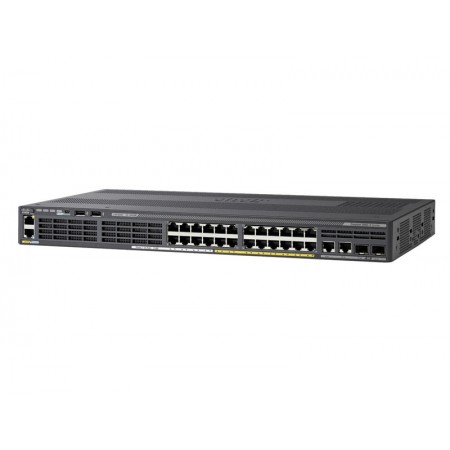

WS-C2960X-24PSQ-L

WS-C2960X-24PSQ-L

0 Review

List Price:	$3,195.00
Price:	$1,022.40 (68% OFF)
Condition:	Brand New Sealed
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

Catalyst 2960-X 24 GigE(8 PoE), 2 x 1G SFP, 2 X 10/100/1000 BT, LAN Base

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS Software features.

Capacity
- TypeActive VLANs
- Value1023
Dimensions & Weight
- Width17.5 in
- Depth11 in
- Height1.8 in
- Weight12.79 lbs
Environmental Parameters
- Min Operating Temperature23 °F
- Max Operating Temperature113 °F
- Humidity Range Operating10 - 95% (non-condensing)
- Min Storage Temperature-13 °F
- Max Storage Temperature158 °F
- Humidity Range Storage10 - 95% (non-condensing)
Flash Memory
- Installed Size128 MB
Header
- CompatibilityPC
- ManufacturerCisco Systems
- Packaged Quantity1
- Product LineCisco Catalyst
- Model2960X-24PSQ-L
- BrandCisco
Interface Provided
- Qty8
- Comments3 ports (PoE+) / 7 ports (PoE)
- TypeUSB
- PoE Power30 W
- Connector TypeSFP
Miscellaneous
- Compliant StandardsAS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, RoHS 2011/65/EU, UL 60950-1 Second Edition, VCCI Class A
- Authentication MethodKerberos, RADIUS, Secure Shell (SSH), TACACS+
- MTBF462,680 hours
- Height (Rack Units)1
- Color CategoryGray
Networking
- TypeSwitch
- Connectivity TechnologyWired
- Data Transfer Rate80 Gbps
- Remote Management ProtocolCLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Telnet
- Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Status IndicatorsLink/activity, PoE, Port duplex mode, Port status, Port transmission speed, RPS (Redundant Power Supply), System
- Ports Qty24
- FeaturesAccess Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, Cisco EnergyWise technology, Class of Service (CoS), DHCP relay, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Fanless, Full duplex capability, Hot Standby Router Protocol (HSRP) support, IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, MAC Address Notification, Management Information Base (MIB), MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), Unicast Storm Control, VLAN support
- MAC Address Table Size16K entries
- SubcategoryNetwork hubs and switches
- Power Over Ethernet (PoE)PoE+
- Advanced SwitchingLayer 3
- ManageableYes
- Form FactorDesktop, Rack-mountable
- Jumbo Frame Support9216 bytes
- SubtypeGigabit Ethernet
- PoE Budget110 W
Performance
- TypeSwitching capacity
- Value216 Gbps
Ports
- Qty24
- Type10/100/1000 (8 PoE+)
Ports (2nd)
- Qty2
- TypeGigabit SFP
Ports (3rd)
- Qty2
- Type10/100/1000
Power Device
- Frequency Required50/60 Hz
- Nominal VoltageAC 120/230 V
- FeaturesRedundant Power System (RPS) connector
- Power RedundancyOptional
- TypeInternal power supply
Processor
- Clock Speed600 MHz
RAM
- Installed Size512 MB
Service
- Support Details TypeTechnical support
- Support Details Service IncludedConsulting
- Support Details Full Contract Period90 days
Service & Support
- TypeLimited lifetime warranty
Service & Support Details
- Response TimeNext business day
Software
- TypeCisco IOS LAN Base

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WSC224QL	3YR SNTC 8X5XNBD Catalyst 2960-X 24 G	Inquiry
CON-SMBS-WSC224QL	CSCO SUP ESS 8X5XNBD Catalyst 2960-X 24 G	Inquiry
CON-SNT-WSC224QL	SNTC-8X5XNBD Catalyst 2960-X 24 G	Inquiry
CON-SNTE-WSC224QL	SNTC-8X5X4 Catalyst 2960-X 24 G	Inquiry
CON-SNTP-WSC224QL	SNTC-24X7X4 Catalyst 2960-X 24 G	Inquiry
CON-SSSNP-WSC224QL	SOLN SUPP 24X7X4 Catalyst 2960 Plus 48 10/100 + 2 T/SFP LA	Inquiry
CON-SSSNT-WSC224QL	SOLN SUPP 8X5XNBD Catalyst 2960-X 24 GigE PoE 110W 2xSFP +	Inquiry
