C9300-24P-A

0 Review

List Price:	$5,510.00
Price:	$2,900.00 (47% OFF)
Condition:	New
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

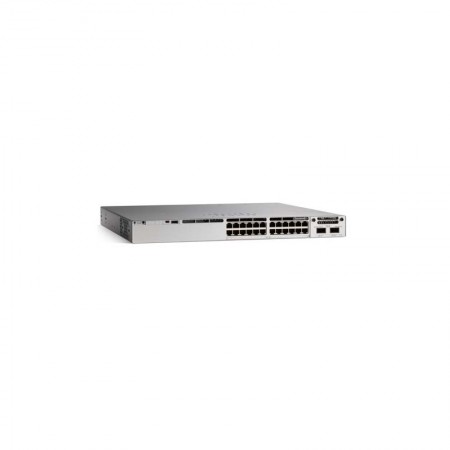

Catalyst 9300 24-port PoE+, Network Advantage

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

Slot Provided
- TypeExpansion slot
- Total Qty1
- Free Qty1
Interface Provided
- Qty48
- Type1000Base-T
- CommentsPoE+
- Connector TypeRJ-45
Networking
- TypeSwitch
- Remote Management ProtocolCLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3
- Compliant StandardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- Status IndicatorsStatus
- Ports Qty24
- Features16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
- Routing ProtocolBGP, EIGRP, HSRP, IGMP, IS-IS, MSDP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
- MAC Address Table Size32000 entries
- StackableStackable
- SubcategoryNetwork hubs and switches
- Power Over Ethernet (PoE)PoE+
- Advanced SwitchingLayer 3
- ManageableYes
- Form FactorRack-mountable
- Jumbo Frame Support9198 bytes
- SubtypeGigabit Ethernet
- PoE Budget445 W
Miscellaneous
- Compliant StandardsAS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
- MTBF299,000 hours
- Height (Rack Units)1
- Encryption Algorithm128-bit AES
- Color CategoryGray
Environmental Parameters
- Min Operating Temperature23 °F
- Max Operating Temperature113 °F
- Humidity Range Operating5 - 90% (non-condensing)
- Min Storage Temperature158 °F
- Max Storage Temperature104 °F
- Humidity Range Storage5 - 90% (non-condensing)
Header
- CompatibilityPC
- ManufacturerCisco Systems
- Packaged Quantity1
- Product LineCisco Catalyst
- Model9300
- BrandCisco
- EditionNetwork Advantage
Power Device
- Frequency Required50 - 60 Hz
- Power Provided715 Watt
- Installed Qty1
- Max Supported Qty2
- Nominal VoltageAC 120/230 V
- Power RedundancyOptional
- TypeInternal power supply
- Hot-PlugHot-plug
Service
- Support Details TypeTechnical support
- Support Details Service IncludedConsulting
- Support Details Full Contract Period90 days
Software
- Type25 x Cisco ONE ISE BASE Licenses Term, 25 x Cisco ONE ISE PLUS Licenses Term, Cisco ONE C9300 Advantage Add-On Term, Cisco ONE C9300 DNA Advantage 48-port Term license, Cisco ONE StealthWatch License Term - 25 Flow Licenses
System Requirements
- Min Operating SystemCisco IOS Universal
Dimensions & Weight
- Width17.5 in
- Depth17.5 in
- Height1.7 in
- Weight16.31 lbs
Service & Support
- TypeLimited lifetime warranty
Capacity
- TypeVLAN IDs
- Value4000
Flash Memory
- Installed Size16 GB
Performance
- TypeSwitching capacity
- Value128 Gbps
Ports
- Qty24
- Type10/100/1000 (PoE+)
RAM
- Installed Size8 GB
Service & Support Details
- Response TimeNext business day
