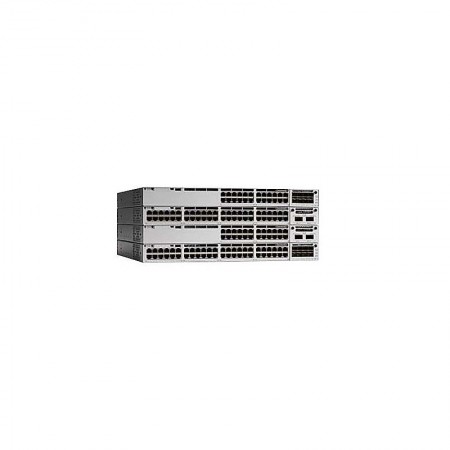

The Cisco Catalyst 9300 Switch is built for security, IoT, mobility and cloud and offers reliable switching. This 48-port switch offers features like Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology and more for enhanced networking. It has a switching capacity of 128 Gb/s and stacking bandwidth of 480 Gb/s. Its internal power supply provides a power of 715 watts for effective functioning.
-
Capacity
- VLAN IDs
- 4000
-
Dimensions & Weight
- 17.5 in
- 17.5 in
- 1.7 in
- 16.73 lbs
-
Environmental Parameters
- 23 °F
- 113 °F
- 5 - 90% (non-condensing)
- 158 °F
- 104 °F
- 5 - 90% (non-condensing)
-
Flash Memory
- 16 GB
-
Header
- PC
- Cisco Systems
- 1
- Cisco Catalyst
- 9300
- Cisco
- Network Advantage
-
Interface Provided
- 48
- 1000Base-T
- PoE+
- RJ-45
-
Miscellaneous
- AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
- 277,770 hours
- 1
- 128-bit AES
- Gray
-
Networking
- Switch
- Wired
- CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- Status
- 48
- 16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
- BGP, EIGRP, HSRP, IGMP, IS-IS, MSDP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
- 32000 entries
- Stackable
- Network hubs and switches
- PoE+
- Layer 3
- Yes
- Rack-mountable
- 9198 bytes
- Gigabit Ethernet
- 437 W
-
Performance
- Switching capacity
- 128 Gbps
-
Ports
- 48
- 10/100/1000 (PoE+)
-
Power Device
- 50 - 60 Hz
- 715 Watt
- 1
- 2
- AC 120/230 V
- Optional
- Internal power supply
- Hot-plug
-
RAM
- 8 GB
-
Service
- Technical support
- Consulting
- 90 days
-
Service & Support
- Limited lifetime warranty
-
Service & Support Details
- Next business day
-
Slot Provided
- Expansion slot
- 1
- 1
-
Software
- 25 x Cisco ONE ISE BASE Licenses Term, 25 x Cisco ONE ISE PLUS Licenses Term, Cisco ONE C9300 Advantage Add-On Term, Cisco ONE C9300 DNA Advantage 48-port Term license, Cisco ONE StealthWatch License Term - 25 Flow Licenses
-
System Requirements
- Cisco IOS Universal
SMARTnet list
| SMARTnet | Description | Price |
|---|---|---|
| CON-3SNT-C93004PA | 3YR SNTC 8X5XNBD Catalyst 9300 48-port PoE+, Network Adva | Inquiry |
| CON-5SNT-C93004PA | 5Y SNTC 8X5XNBD Catalyst 9300 48-port PoE+, Network Adva | Inquiry |
| CON-SMBS-C93004PA | CSCO SUP ESS 8X5XNBD Cat 9300 48-port PoE+, Network Adva | Inquiry |
| CON-SNT-C93004PA | SNTC-8X5XNBD Catalyst 9300 48-port PoE+, Network Adva | Inquiry |
| CON-SNTE-C93004PA | SNTC-8X5X4 Catalyst 9300 48-port PoE+, Network Adva | Inquiry |
| CON-SNTP-C93004PA | SNTC-24X7X4 Catalyst 9300 48-port PoE+, Network Adva | Inquiry |
| CON-SSSNP-C93004PA | SOLN SUPP 24X7X4 Catalyst 9300 48-port PoE+, Network Adva | Inquiry |
| CON-SSSNT-C93004PA | SOLN SUPP 8X5XNBD Catalyst 9300 48-port PoE+, Network Adva | Inquiry |
