C9500-40X-A

0 Review

List Price:	$24,700.00
Price:	$14,000.00 (43% OFF)
Condition:	New
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

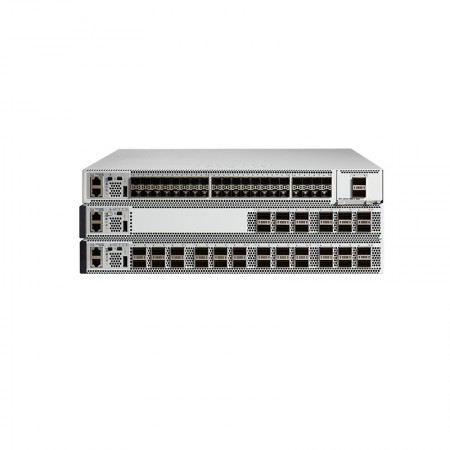

Catalyst 9500 40-port 10Gig switch, Network Advantage

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco-*-s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry-*-s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Cabinet
- Chassis Built-in DevicesRFID tag
Interface Provided
- Qty40
- Type10GBase-X
- Connector TypeSFP+
Networking
- TypeSwitch
- Remote Management ProtocolNETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3, TFTP
- Compliant StandardsIEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Ports Qty40
- FeaturesAccess Control List (ACL) support, Application Visibility and Control (AVC), Built-in ASIC, Cisco StackWise Virtual, Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), Hierarchical Virtual Private LAN Service (H-VPLS), IGMP snooping, IPv6 support, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, LLDP support, Location ID Separation Protocol (LISP), MACsec support, MLD snooping, NAT support, NetFlow, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), Open Shortest Path First (OSPF), PAT support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Stateful switchover (SSO), Switched Port Analyzer (SPAN), Syslog support, Third-party IP Address Management (IPAM) integration, TrustSec support, Virtual Extensible LAN (VXLAN), Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED), Zero-touch provisioning (ZTP)
- Routing ProtocolBGP, EIGRP, IGMP, IS-IS, MPLS, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng, VRRP
- MAC Address Table Size64K entries
- SubcategoryNetwork hubs and switches
- Power Over Ethernet (PoE)UPOE
- Advanced SwitchingLayer 3
- ManageableYes
- Form FactorRack-mountable
- Jumbo Frame Support9198 bytes
- Subtype10 Gigabit Ethernet
Miscellaneous
- Compliant StandardsAS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 300386, EN 60950-1, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, KN 61000-4, KN22 Class A, KN24, Plug and Play, UL 60950-1, VCCI Class A
- MTBF180,640 hours
- Height (Rack Units)1
- Encryption Algorithm256-bit AES
- Color CategoryGray
Environmental Parameters
- Min Operating Temperature32 °F
- Max Operating Temperature104 °F
- Humidity Range Operating5 - 90% (non-condensing)
- Min Storage Temperature-4 °F
- Max Storage Temperature149 °F
- Humidity Range Storage5 - 95% (non-condensing)
Header
- CompatibilityPC
- ManufacturerCisco Unified Computing Disti
- Packaged Quantity1
- Product LineCisco Catalyst
- Model9500
- BrandCisco
- EditionNetwork Advantage
Power Device
- Frequency Required50 - 60 Hz
- Power Provided950 Watt
- Installed Qty1
- Max Supported Qty2
- Nominal VoltageAC 120/230 V
- FeaturesFront-to-rear air?ow
- Power RedundancyOptional
- Power Redundancy Scheme1+1
- TypeInternal power supply
- Hot-PlugHot-plug
Processor
- Installed Qty1
- Clock Speed2.4 GHz
Service
- Support Details TypeTechnical support
- Support Details Service IncludedConsulting
- Support Details Full Contract Period90 days
Dimensions & Weight
- Width17.5 in
- Depth21.5 in
- Height1.7 in
Service & Support
- TypeLimited lifetime warranty
Capacity
- TypeVLAN IDs
- Value4000
Flash Memory
- Installed Size16 GB
Performance
- TypeSwitching capacity (full duplex)
- Value480 Gbps
Ports
- Qty40
- Type10 Gigabit SFP+
RAM
- Installed Size16 GB
- TechnologyDDR4 SDRAM
- Form FactorDIMM 288-pin
Service & Support Details
- Response TimeNext business day

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-C95004XA	3YR SNTC 8X5XNBD Catalyst 9500 40-port 10Gig switch, Netw	Inquiry
CON-SMBS-C95004XA	CSCO SUP ESS 8X5XNBD Cat 9500 40-port 10Gig switch, Netw	Inquiry
CON-SNT-C95004XA	SNTC-8X5XNBD Catalyst 9500 40-port 10Gig switch, Netw	Inquiry
CON-SNTE-C95004XA	SNTC-8X5X4 Catalyst 9500 40-port 10Gig switch, Netw	Inquiry
CON-SNTP-C95004XA	SNTC-24X7X4 Catalyst 9500 40-port 10Gig switch, Netw	Inquiry
CON-SSSNP-C95004XA	SOLN SUPP 24X7X4 Catalyst 9500 40-port 10Gig switch, Netw	Inquiry
CON-SSSNT-C95004XA	SOLN SUPP 8X5XNBD Catalyst 9500 40-port 10Gig switch, Netw	Inquiry
