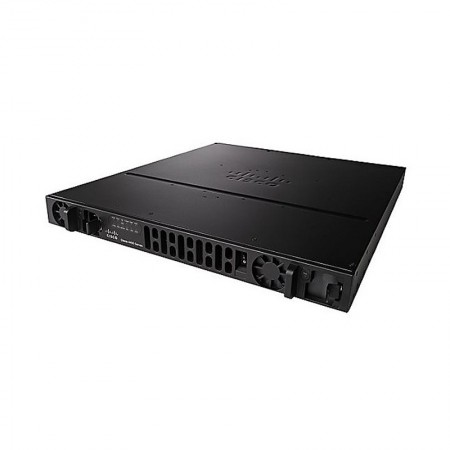

The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With amazing levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.
-
Dimensions & Weight
- 17.2 in
- 20 in
- 1.7 in
- 18.52 lbs
-
Environmental Parameters
- 32 °F
- 104 °F
- 5 - 85%
-
Expansion Slots
- NIM
-
Flash Memory
- 8 GB
- 32 GB
-
Header
- PC
- Cisco Systems
- 1
- Cisco ISR
- 4431
- Cisco
- Security Bundle
-
Interface Provided
- Ethernet 10Base-T/100Base-TX/1000Base-T
- 2
- Management
- SFP (mini-GBIC)
-
Miscellaneous
- Included
- AS/NZS 3548 Class A, AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438, CS-03, EN 60950-1, EN 61000, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, KN22, KN24, R&TTE, UL 60950-1, VCCI V-3
- 1
- Black
-
Networking
- Router
- Wired
- Ethernet, Fast Ethernet, Gigabit Ethernet
- RMON, SNMP
- ANSI T1.101, IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah, ITU-T G.823, ITU-T G.824
- Access Control List (ACL) support, Class-Based Weighted Fair Queuing (CBWFQ), Dynamic Multipoint VPN (DMVPN), Firewall protection, IPFIX, IPSec Virtual Private Network (VPN), IPv6 support, NetFlow, Quality of Service (QoS), RADIUS support, Syslog support, VLAN support, VPN support, Wall mountable, Weighted Random Early Detection (WRED)
- DHCP, IPSec, PPPoE
- BGP, DVMRP, EIGRP, GRE, IGMPv3, IPv4-to-IPv6 Multicast, IS-IS, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
- Modular
- Rack-mountable
- 4
- Firewall, USB port, VPN support
-
OS Provided
- Cisco IOS Security
-
Performance
- Aggregate throughput
- 500 Mbps
-
Power Device
- 50/60 Hz
- 1
- 2
- AC 120/230 V
- Optional
- Internal power supply
- Hot-plug
-
RAM
- 4 GB
- 16 GB
- DDR3 SDRAM
-
Service
- Limited warranty
- Advance parts replacement
- 90 days
-
Service & Support
- 90 days warranty
-
Service & Support Details
- 10 days
-
Slot Provided
- 3
- 0
-
Software
- Cisco IOS IP Base
SMARTnet list
| SMARTnet | Description | Price |
|---|---|---|
| CON-3SNT-ISR4431S | 3YR SNTC 8X5XNBD Cisco ISR 4431 Sec b | Inquiry |
| CON-SNT-ISR4431S | SNTC-8X5XNBD Cisco ISR 4431 Sec b | Inquiry |
| CON-SNTE-ISR4431S | SNTC-8X5X4 Cisco ISR 4431 Sec b | Inquiry |
| CON-SNTP-ISR4431S | SNTC-24X7X4 Cisco ISR 4431 Sec b | Inquiry |
| CON-SSSNP-ISR4431S | Cisco ISR 4431 Sec bundle w SEC license | Inquiry |
| CON-SSSNT-ISR4431S | SOLN SUPP 8X5XNBD Cisco ISR 4431 Sec bundle w/SEC license | Inquiry |
