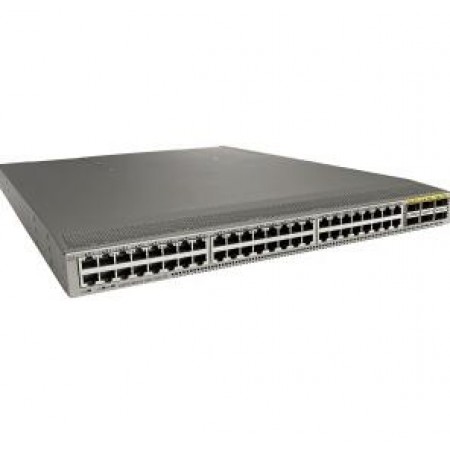

The Cisco Nexus 9372TX Switch offers a line-rate layer 2 and layer 3 feature set in a compact form factor. It offers a flexible switching platform for both 3-tier and spine-leaf architectures as a leaf node. With the option to operate in Cisco NX-OS or Application Centric Infrastructure (ACI) mode, it can be deployed within small business, enterprise, and service provider architectures.
-
Capacity
- Virtual Routing and Forwarding (VRF) entries
- 1000
-
Dimensions & Weight
- 17.3 in
- 22.5 in
- 1.7 in
- 22.6 lbs
-
Environmental Parameters
- 32 °F
- 104 °F
- 5 - 95% (non-condensing)
- -40 °F
- 158 °F
-
Header
- PC
- Cisco Systems
- 1
- Cisco Nexus
- 9372TX-E
- Cisco
-
Interface Provided
- 6
- Serial (RS-232)
- Uplink
- QSFP+, RJ-45
-
Miscellaneous
- Included
- AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, CSA C22.2 No. 60950-1 Second Edition, EMC, EN 300386, EN 60950-1 Second Edition, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A
- 1
- Gray
-
Networking
- Switch
- Desktop, Rack-mountable
- Wired
- 48
- Access Control List (ACL) support, Hot Standby Router Protocol (HSRP) support, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Quality of Service (QoS), Virtual PortChannel (vPC) technology, Virtual Routing and Forwarding (VRF), VLAN support, VXLAN tunnel endpoints (VTEP) support
- 96K entries
- Network hubs and switches
- Layer 3
- Yes
- 10 Gigabit Ethernet
-
Performance
- Bandwidth
- 1.44 Tbps
-
Ports
- 48
- 10GBase-T
-
Ports (2nd)
- 6
- 40 Gigabit QSFP+ (uplink)
-
Power Device
- 0
- 2
- Yes
- Internal power supply
- Hot-plug
-
Processor
- 2.5 GHz
-
RAM
- 16 GB
-
Service
- Limited warranty
- Advance parts replacement
- 1 year
-
Service & Support
- 1 year warranty
-
Service & Support Details
- 10 days
-
Software
- Cisco NX-OS
SMARTnet list
| SMARTnet | Description | Price |
|---|---|---|
| CON-3SNT-C9372TXE | 3YR SNTC 8X5XNBD Nexus 9300 with 48p 1/10G-T and 6p 40G Q | Inquiry |
| CON-SNT-C9372TXE | SNTC-8X5XNBD Nexus 9300 with 48p 1/10G-T and 6p 40G Q | Inquiry |
| CON-SNTE-C9372TXE | SNTC-8X5X4 Nexus 9300 with 48p 1/10G-T and 6p 40G Q | Inquiry |
| CON-SNTP-C9372TXE | SNTC-24X7X4 Nexus 9300 with 48p 1/10G-T and 6p 40G Q | Inquiry |
| CON-SSSNP-C9372TXE | SOLN SUPP 24X7X4 Nexus 9300 with 48p 1/10G-T and 6p 40G Q | Inquiry |
| CON-SSSNT-C9372TXE | SOLN SUPP 8X5XNBD Nexus 9300 with 48p 1/10G-T and 6p 40G Q | Inquiry |
