VS-S2T-10G-XL

VS-S2T-10G-XL

0 Review

List Price:	$54,000.00
Price:	$13,500.00 (75% OFF)
Condition:	Brand New Sealed
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

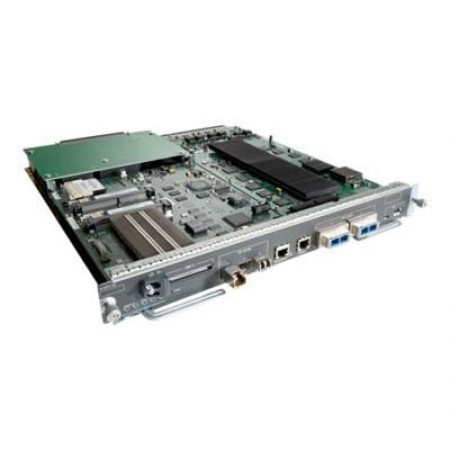

Catalyst 6500 Supervisor 2T 80G System XL

Overview
Specification
Shipping Payment
Warranty
Reviews

The Cisco Catalyst 6500 Supervisor Engine 2T is designed to deliver higher performance, better scalability, and enhanced hardware-enabled features. Supervisor Engine 2T integrates a high-performance 2-Terabit crossbar switch fabric that enables 80 Gbps switching capacity per slot on all Cisco Catalyst 6500 E-series chassis. The forwarding engine on Supervisor Engine 2T is capable of delivering high-performance forwarding for Layer 2 and Layer 3 services. Supervisor Engine 2T delivers many hardware-enabled innovations in the areas of security, quality of service (QoS), virtualization, and manageability. The rich feature set of Supervisor Engine 2T enhances applications such as traditional IP forwarding, Layer 2 and Layer 3 Multi-protocol Label Switching (MPLS) VPNs, and VPLS.

Main Specifications
- RAM Installed ( Max ) 4 GB
- Enclosure Type Plug-in module
- Flash Memory Installed (Max) 1 GB
- Designed For Catalyst 6503-E, 6504-E, 6506-E, 6506-E IDSM-2, 6509-E, 6509-E 10Gig, 6509-V-E, 6513-E
- Performance IPv4 routing : 720 Mpps ¦ IPv6 routing : 390 Mpps
- Product Description Cisco Catalyst 6500 Series Supervisor Engine 2T XL - control processor
- Dimensions (WxDxH) 14.4 in x 16 in x 1.7 in
- Features NAT support, MPLS support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN
- Data Link Protocol 10 Gigabit Ethernet
- Ports Qty 2
- Device Type Control processor
- Capacity MAC addresses : 128000 ¦ IPv4 routes : 1024000 ¦ IPv6 routes : 512000 ¦ NetFlow entries : 1024000
- Form Factor Plug-in module
- RAM 4 GB
- Flash Memory 1 GB
- Weight 12 lbs
- Manufacturer Warranty 90 days warranty
Compatibility Information
- Designed For Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E Firewall Security System Bundle, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E Application Control Engine (ACE) 30 8G Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Data Center Services Bundle, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with Supervisor Engine 720, 6509-E with WiSM Bundle, 6509-V-E, 6513-E
Expansion / Connectivity
- Expansion Slot(s) 3 (total) / 3 (free) x SFP (mini-GBIC) ¦ 2 (total) / 2 (free) x X2
- Interfaces 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x management - console - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
- Expansion Slots 3 (total) / 3 (free) x SFP (mini-GBIC) ¦ 2 (total) / 2 (free) x X2
General
- Depth 16 in
- Height 1.7 in
- Width 14.4 in
- Device Type Control processor
- Weight 12 lbs
Networking
- Form Factor Plug-in module
- Data Link Protocol 10 Gigabit Ethernet
- Compliant Standards IEEE 802.1x
- Connectivity Technology Wired
- Features NAT support, MPLS support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN
- Ports Qty 2
- Performance IPv4 routing : 720 Mpps ¦ IPv6 routing : 390 Mpps
- Capacity MAC addresses : 128000 ¦ IPv4 routes : 1024000 ¦ IPv6 routes : 512000 ¦ NetFlow entries : 1024000
Miscellaneous
- Compliant Standards FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386
Processor / Memory / Storage
- Flash Memory Installed (Max) 1 GB
- RAM Installed ( Max ) 4 GB
- Flash Memory 1 GB
- RAM 4 GB
Environmental Parameters
- Humidity Range Operating 10 - 90% (non-condensing)
- Max Operating Temperature 104 °F
- Min Operating Temperature 32 °F
Manufacturer Warranty
- Service & Support Details Limited warranty - 90 days
- Service & Support 90 days warranty
Communications
- Supported Flash Memory Cards CompactFlash Card
Power
- Power Consumption Operational 450 Watt
