WS-C2960C-8PC-L

WS-C2960C-8PC-L

0 Review

List Price:	$1,095.00
Price:	$481.80 (56% OFF)
Condition:	Brand New Sealed
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

Cisco Catalyst 2960 switch includes 8 x POE Fast Ethernet Ports, 2 x Dual Uplink Slots, Lan Base Image

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

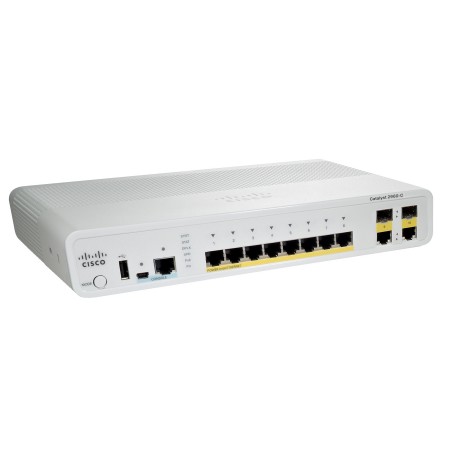

The WS-C2960C-8PC-L switch is a compact, form factor switch with Gigabit Ethernet and Fast Ethernet capabilities. It is designed to administer deployments on the outside of the wiring closet. As one of the flagships of the Cisco Catalyst 2900 switch line, it offers functionality for IP video cameras, unified communications, wireless and many other applications.

Applications can be run using this Cisco 2960 from any number of locales including from a cruise ship, a classroom, constrained office spaces as well as branch offices. It is designed to work in places in which wiring is constrained. As such, the product comes equipped with a dual uplink and 8 FE PoE capability. Features include support for DHCP, PoE, BOOTP, ARP, VLAN, IGMP snooping, Syslog, DiffServ, Broadcast Storm Control, IPv6, STP, DTP, PAgP, ACL, TFTP, QoS, DAI, UDLD, LACP and RSPAN. The unit has a forwarding performance of 10 Gbps, assuring the business network owner of top performance no matter where the unit happens to be physically.

The certified, pre-owned WS-C2960C-8PC-L includes a five-year retail warranty and the assurance of Vology's rigorous testing. Overall, with remote management protocol versatility, this Cisco switch provides services where many other network switches simply cannot.

Main Specifications
- Bundled Services Limited lifetime warranty
- Capacity Virtual interfaces (VLANs) : 255
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP)
- Subtype Fast Ethernet
- Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- Enclosure Type Desktop, rack-mountable, wall-mountable - 1U
- Ports 8 x 10/100 + 2 x combo Gigabit SFP
- Jumbo Frame Support 9018
- Power Over Ethernet (PoE) PoE
- Performance Forwarding performance : 10 Gbps
- Routing Protocol RIP-1, RIP-2
- Device Type Switch - 8 ports - managed
- Power AC 120/230 V ( 50/60 Hz )
- Features DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
- Dimensions (WxDxH) 10.6 in x 9.4 in x 1.7 in
- Weight 4.1 lbs
- Manufacturer Warranty Limited lifetime warranty
- Product Description Cisco Catalyst Compact 2960C-8PC-L - switch - 8 ports - managed - desktop, rack-mountable, wall-mountable
- Interfaces Fast Ethernet
General
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP)
- Subtype Fast Ethernet
- Flash Memory 64 MB
- Enclosure Type Desktop, rack-mountable, wall-mountable - 1U
- Device Type Switch - 8 ports - managed
- Status Indicators Port status, link activity, system
- Features DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
- Ports 8 x 10/100 + 2 x combo Gigabit SFP
- Jumbo Frame Support 9018
- Performance Forwarding performance : 10 Gbps
- Routing Protocol RIP-1, RIP-2
- Capacity Virtual interfaces (VLANs) : 255
- Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- RAM 128 MB
- Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Power Over Ethernet (PoE) PoE
- Interfaces Fast Ethernet
Environmental Parameters
- Humidity Range Operating 5 - 95% (non-condensing)
- Max Operating Temperature 104 °F
- Min Operating Temperature 23 °F
- Humidity Range Storage 5 - 95% (non-condensing)
- Max Storage Temperature 158 °F
- Min Storage Temperature -13 °F
Power
- Power Device Power supply - internal
- Voltage Required AC 120/230 V ( 50/60 Hz )
Expansion / Connectivity
- Interfaces 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 8 x 10Base-T/100Base-TX - RJ-45 - PoE ¦ 1 x console - mini-USB Type B - management ¦ 1 x RS-232 - RJ-45 - management ¦ 2 x SFP (mini-GBIC) ¦ USB : 1 x 4 pin USB Type A
Miscellaneous
- Compliant Standards GOST, CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943
- Weight 4.1 lbs
- Height 1.7 in
- Depth 9.4 in
- Width 10.6 in
- MTBF 373,635 hour(s)
Manufacturer Warranty
- Service & Support Details Limited warranty - replacement - lifetime - response time: next business day ¦ Limited warranty - power supply - 5 years
- Service & Support Limited lifetime warranty
Software / System Requirements
- Software Included Cisco IOS LAN Base
Dimensions & Weight
- Depth 9.4 in
- Weight 4.1 lbs
- Height 1.7 in
- Width 10.6 in

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-C296C8PC	3YR SNTC 8X5XNBD Cat 2960C Switch 8 FE PoE, 2 x Dual	Inquiry
CON-SMBS-C296C8PC	CSCO SUP ESS 8X5XNBD Cat 2960C Switch 8 FE PoE, 2 x Dual	Inquiry
CON-SNT-C296C8PC	SNTC-8X5XNBD Catalyst 2960C Switch 8 FE PoE, 2 x Dual	Inquiry
CON-SNTE-C296C8PC	SNTC-8X5X4 Catalyst 2960C Switch 8 FE PoE, 2 x Dual	Inquiry
CON-SNTP-C296C8PC	SNTC-24X7X4 Catalyst 2960C Switch 8 FE PoE, 2 x Dual	Inquiry
CON-SSSNP-C296C8PC	SOLN SUPP 24X7X4 Catalyst 2960 24TC-L for Japan Post	Inquiry
CON-SSSNT-C296C8PC	SOLN SUPP 8X5XNBD Catalyst 2960C Switch 8 FE PoE 2 x Dual U	Inquiry
