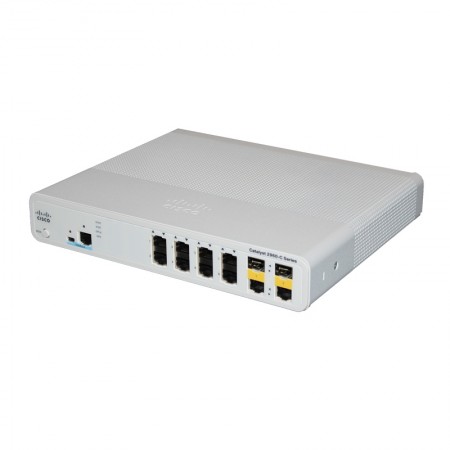

The Cisco Catalyst 2960-C series compact switch is small form-factor Gigabit Ethernet and Fast Ethernet switches designed for deployments outside the wiring closet. Enterprise and commercial customers can deliver advanced security services, unified communications, wireless, IP video cameras, and other applications for the office workspace, branch office, classroom, cruise ship, and other wiring-constrained environments.
-
Main Specifications
- Limited lifetime warranty
- 2.4 lbs
- Fast Ethernet
- Cisco Catalyst Compact 2960C-8TC-L - switch - 8 ports - managed - desktop, rack-mountable, wall-mountable
- 10.6 in x 8.4 in x 1.7 in
- DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
- Limited lifetime warranty
- AC 120/230 V ( 50/60 Hz )
- RIP-1, RIP-2
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP)
- Switch - 8 ports - managed
- Virtual interfaces (VLANs) : 255
- 9018
- 8 x 10/100 + 2 x shared Gigabit SFP
- Forwarding performance : 10 Gbps ¦ Forwarding performance (64-byte packet size) : 3.8 Mpps
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- Desktop, rack-mountable, wall-mountable - 1U
- Fast Ethernet
-
General
- Fast Ethernet
- Desktop, rack-mountable, wall-mountable - 1U
- Switch - 8 ports - managed
- Port status, link activity, system
- Forwarding performance : 10 Gbps ¦ Forwarding performance (64-byte packet size) : 3.8 Mpps
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- 128 MB
- Virtual interfaces (VLANs) : 255
- 9018
- 8 x 10/100 + 2 x shared Gigabit SFP
- RIP-1, RIP-2
- DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
- 64 MB
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP)
- Fast Ethernet
-
Power
- Power supply - internal
- AC 120/230 V ( 50/60 Hz )
-
Software / System Requirements
- Cisco IOS LAN Base
-
Miscellaneous
- 516,980 hour(s)
- 8.4 in
- 1.7 in
- 2.4 lbs
- 10.6 in
- GOST, CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943
-
Environmental Parameters
- -13 °F
- 23 °F
- 104 °F
- 5 - 95% (non-condensing)
- 158 °F
- 5 - 95% (non-condensing)
-
Manufacturer Warranty
- Limited lifetime warranty
- Limited warranty - replacement - lifetime - response time: next business day ¦ Limited warranty - power supply - 5 years
-
Expansion / Connectivity
- 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 8 x 10Base-T/100Base-TX - RJ-45 ¦ 1 x console - mini-USB Type B - management ¦ 1 x RS-232 - RJ-45 - management ¦ 2 x SFP (mini-GBIC) ¦ USB : 1 x 4 pin USB Type A
-
Dimensions & Weight
- 1.7 in
- 2.4 lbs
- 8.4 in
- 10.6 in
SMARTnet list
| SMARTnet | Description | Price |
|---|---|---|
| CON-3SNT-C296C8TC | 3YR SNTC 8X5XNBD Cat 2960C Switch 8 FE, 2 x Dual Upl | Inquiry |
| CON-SMBS-C296C8TC | CSCO SUP ESS 8X5XNBD Cat 2960C Switch 8 FE, 2 x Dual Upl | Inquiry |
| CON-SNT-C296C8TC | SNTC-8X5XNBD Catalyst 2960C Switch 8 FE, 2 x Dual Upl | Inquiry |
| CON-SNTE-C296C8TC | SNTC-8X5X4 Catalyst 2960C Switch 8 FE, 2 x Dual Upl | Inquiry |
| CON-SNTP-C296C8TC | SNTC-24X7X4 Catalyst 2960C Switch 8 FE, 2 x Dual Upl | Inquiry |
| CON-SSSNP-C296C8TC | SOLN SUPP 24X7X4 Catalyst 2960 48 10/100 + 2 1000BT LAN Base | Inquiry |
| CON-SSSNT-C296C8TC | SOLN SUPP 8X5XNBD Catalyst 2960C Switch 8 FE 2 x Dual Uplin | Inquiry |
