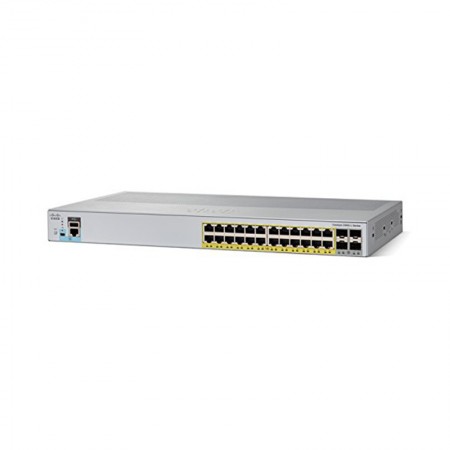

Simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. The Cisco Catalyst 2960-L supports Power over Ethernet (PoE). Make your network ready for the mobile devices and applications it needs to support with the 2960-L, all at a great value.
-
Capacity
- VLANs supported
- 4094
-
Dimensions & Weight
- 17.5 in
- 10.4 in
- 1.7 in
- 7.39 lbs
-
Environmental Parameters
- 23 °F
- 113 °F
- 5 - 90%
- -13 °F
- 158 °F
- 5 - 95%
-
Flash Memory
- 256 MB
-
Header
- Cisco Systems
- 1
- Cisco Catalyst
- 2960L-24PQ-LL
- Cisco
-
Interface Provided
- 4
- USB
- Uplink
- Type A
-
Miscellaneous
- AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2011/65/EU, EN 300386, EN 60950-1 Second Edition, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, Plug and Play, RoHS, UL 60950-1 Second Edition, USGv6, VCCI Class A
- Kerberos, RADIUS, Secure Shell (SSH), TACACS+
- 909,838 hours
- Gray
-
Networking
- Switch
- CLI, HTTP, RMON, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
- IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Link/speed, PoE, Port duplex mode, Port status, System
- 24
- Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BOOTP support, Bridge protocol data unit (BPDU), Broadcast Storm Control, Cisco EnergyWise technology, Class of Service (CoS), DHCP snooping, DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Dynamic VLAN Support (GVRP), Energy Efficient Ethernet, Fanless, IGMP filtering, Internet Control Message Protocol (ICMP), Intrusion Detection System (IDS), Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Network Timing Protocol (NTP), Port Aggregation Protocol (PAgP) support, Port Security, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Spanning-tree Root Guard (STRG), Uni-Directional Link Detection (UDLD), Unicast Storm Control, VLAN Trunking Protocol (VTP), Weighted Round Robin (WRR) queuing, Weighted Tail Drop (WTD)
- IGMP, MLD, MLDv2
- 8K entries
- Network hubs and switches
- PoE+
- Yes
- Desktop, Rack-mountable
- 10240 bytes
- Gigabit Ethernet
- 195 W
-
Performance
- Switching bandwidth
- 128 Gbps
-
Ports
- 24
- 10/100/1000 (PoE+)
-
Ports (2nd)
- 4
- 1 Gigabit / 10 Gigabit SFP+
-
Power Device
- 50 - 60 Hz
- AC 120/230 V
-
Processor
- ARM7
- 800 MHz
-
RAM
- 512 MB
-
Service
- Technical support
- Consulting
- 90 days
-
Service & Support
- Limited lifetime warranty
-
Service & Support Details
- Next business day
-
Software
- Cisco IOS LAN Lite
Shipping
