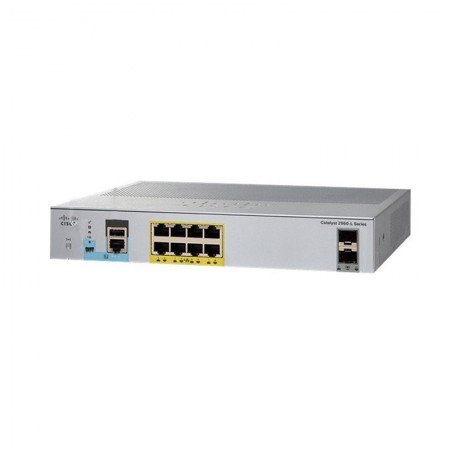

Simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. Make your network ready for the mobile devices and applications it needs to support with the 2960L, all at a great value.
-
Capacity
- VLANs supported
- 4094
-
Dimensions & Weight
- 10.6 in
- 9.4 in
- 1.7 in
- 5.64 lbs
-
Environmental Parameters
- 23 °F
- 131 °F
- 5 - 90%
- -13 °F
- 158 °F
- 5 - 95%
-
Flash Memory
- 256 MB
-
Header
- PC
- Cisco Systems
- 1
- Cisco Catalyst
- 2960L-8PS-LL
- Cisco
-
Interface Provided
- 8
- USB
- Uplink
- Type A
-
Miscellaneous
- AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, EN 300386, EN 60950-1 Second Edition, EN55022 Class A, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1 Second Edition, KN24, RoHS 2011/65/EU, UL 60950-1, VCCI Class A
- Kerberos, RADIUS, Secure Shell (SSH), TACACS+
- 2,416,689 hours
- Gray
-
Networking
- Switch
- Wired
- CLI, SNMP 3
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Link/speed, PoE, Status, System
- 8
- Access Control List (ACL) support, ARP support, Bridge protocol data unit (BPDU), Cisco EnergyWise technology, DHCP snooping, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Dynamic VLAN Support (GVRP), Fanless, IGMP filtering, Layer 2 switching, Link Aggregation Control Protocol (LACP), MAC Address Notification, Multiple Spanning Tree Protocol (MSTP) support, Network Timing Protocol (NTP), Per-port broadcast throttling, Per-VLAN Rapid Spanning Tree (PVRST), Port Aggregation Protocol (PAgP) support, RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, SNMP support, Spanning-tree Root Guard (STRG), Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), VLAN Trunking Protocol (VTP)
- IGMP
- 8000 entries
- Network hubs and switches
- PoE+
- Yes
- Desktop, Rack-mountable
- 10240 bytes
- Gigabit Ethernet
- 67 W
-
Performance
- Switching bandwidth
- 20 Gbps
-
Ports
- 8
- 10/100/1000
-
Ports (2nd)
- 2
- Gigabit SFP (uplink)
-
Power Device
- 50 - 60 Hz
- AC 120/230 V
- Internal power supply
-
Processor
- ARM7
- 800 MHz
-
RAM
- 512 MB
-
Software
- Cisco IOS LAN Lite
SMARTnet list
| SMARTnet | Description | Price |
|---|---|---|
| CON-3SNT-WSC29606 | 3YR SNTC 8X5XNBD Catalyst 2960L 8 port GigE with PoE, 2 x | Inquiry |
| CON-SMBS-WSC29606 | CSCO SUP ESS 8X5XNBD Cat 2960L 8 port GigE with PoE, 2 x | Inquiry |
| CON-SNT-WSC29606 | SNTC-8X5XNBD Catalyst 2960L 8 port GigE with PoE, 2 x | Inquiry |
| CON-SNTE-WSC29606 | SNTC-8X5X4 Catalyst 2960L 8 port GigE with PoE, 2 x | Inquiry |
| CON-SNTP-WSC29606 | SNTC-24X7X4 Catalyst 2960L 8 port GigE with PoE, 2 x | Inquiry |
| CON-SSSNP-WSC29606 | SOLN SUPP 24X7X4 Catalyst 2960L 8 port GigE with PoE, 2 x | Inquiry |
| CON-SSSNT-WSC29606 | SOLN SUPP 8X5XNBD Catalyst 2960L 8 port GigE with PoE, 2 x | Inquiry |
