WS-C2960X-48FPD-L

WS-C2960X-48FPD-L

0 Review

List Price:	$7,995.00
Price:	$2,300.00 (71% OFF)
Condition:	New
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

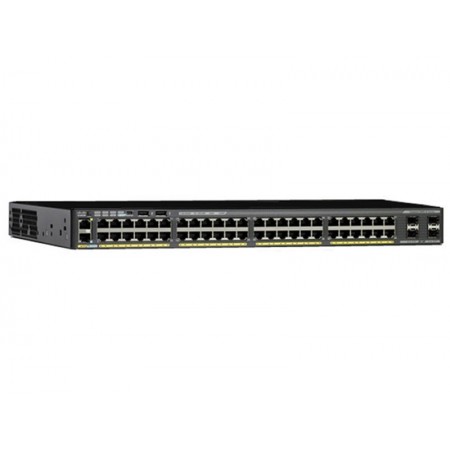

Cisco Catalyst 2960X-48FPD-L - Switch - managed - 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ - desktop, rack-mountable - PoE+

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

Cisco Catalyst 2960-X series switch is the next generation of the worlds most widely deployed access switches. It enables intelligent services such as application visibility; smart operations layer 3 routing and deliver best-in-class energy efficiency with up to 80 percent energy savings.

Main Specifications
- Bundled Services Limited lifetime warranty
- Jumbo Frame Support 9216
- Ports 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
- Performance Switching capacity : 216 Gbps ¦ Forwarding performance (64-byte packet size) : 130.9 Mpps
- Power Over Ethernet (PoE) PoE+
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Device Type Switch - 48 ports - managed - stackable
- Capacity Virtual interfaces (VLANs) : 1023
- Product Description Cisco Catalyst 2960X-48FPD-L - switch - 48 ports - managed - desktop, rack-mountable
- Manufacturer Warranty Limited lifetime warranty
- Dimensions (WxDxH) 17.5 in x 14.5 in x 1.8 in
- Weight 12.8 lbs
- Features Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Cisco FlexStack Plus
- Power AC 120/230 V ( 50/60 Hz )
- PoE Budget 740 W
- Power Redundancy Optional
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Enclosure Type Desktop, rack-mountable 1U
- Subtype Gigabit Ethernet
Dimensions & Weight
- Height 1.8 in
- Depth 14.5 in
- Weight 12.8 lbs
- Width 17.5 in
General
- Flash Memory 128 MB
- Max Units In A Stack 8
- Performance Switching capacity : 216 Gbps ¦ Forwarding performance (64-byte packet size) : 130.9 Mpps
- Device Type Switch - 48 ports - managed - stackable
- Enclosure Type Desktop, rack-mountable - 1U
- Status Indicators Port status, link activity, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Processor : 600 MHz
- Features Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Cisco FlexStack Plus
- Subtype Gigabit Ethernet
- PoE Budget 740 W
- Capacity Virtual interfaces (VLANs) : 1023
- RAM 512 MB
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Ports 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
- Jumbo Frame Support 9216
- Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Power Over Ethernet (PoE) PoE+
Power
- Installed Qty 1 (installed) / 2 (max)
- Power Device Internal power supply
- Voltage Required AC 120/230 V ( 50/60 Hz )
- Power Redundancy Optional
- Power Redundancy Scheme 1+1 (with optional power supply)
- Features Redundant Power System (RPS) connector
Environmental Parameters
- Humidity Range Operating 10 - 95% (non-condensing)
- Max Operating Temperature 113 °F
- Min Operating Temperature 23 °F
- Min Storage Temperature -13 °F
- Humidity Range Storage 10 - 95% (non-condensing)
- Max Storage Temperature 158 °F
Miscellaneous
- Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 300386
- MTBF 233,370 hours
Manufacturer Warranty
- Service & Support Limited lifetime warranty
- Service & Support Details Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Expansion / Connectivity
- Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
- Interfaces 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 - 24 ports (PoE+) / 48 ports (PoE) - 30 W ¦ 1 x console console - RJ-45 - RJ-45 ¦ 1 x mini-USB console - mini-USB Type B - Type B - management ¦ 2 x USB - Type A ¦ 1 x 1000Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 - management ¦ 2 x SFP+ - SFP+ - uplink
Software / System Requirements
- Software Included Cisco IOS LAN Base

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WSC296XL	3YR SNTC 8X5XNBD Cat 2960-X 48 GigE PoE 740W, 2 x 10	Inquiry
CON-SMBS-WSC296XL	CSCO SUP ESS 8X5XNBD Cat 2960-X 48 GigE PoE 740W, 2 x 10	Inquiry
CON-SNT-WSC296XL	SNTC-8X5XNBD Catalyst 2960-X 48 GigE PoE 740W, 2 x 10	Inquiry
CON-SNTE-WSC296XL	SNTC-8X5X4 Catalyst 2960-X 48 GigE PoE 740W, 2 x 10	Inquiry
CON-SNTP-WSC296XL	SNTC-24X7X4 Catalyst 2960-X 48 GigE PoE 740W, 2 x 10	Inquiry
CON-SSSNP-WSC296XL	SOLN SUPP 24X7X4 Cat 2960S 48 GigE PoE 740W 2 x 10G SFP+ LAN	Inquiry
CON-SSSNT-WSC296XL	SOLN SUPP 8X5XNBD Catalyst 2960-X 48 GigE PoE 740W 2 x 10G	Inquiry
