WS-C2960X-48LPS-L

WS-C2960X-48LPS-L

$5,595.00
$1,500.00 (73% OFF)
New
In Stock
2~6 days Arrival via DHL

Quick Overview

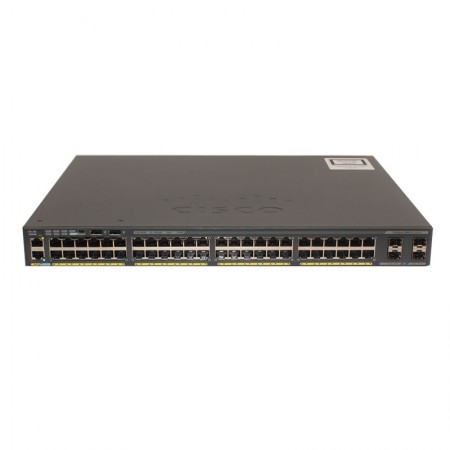

Cisco Catalyst 2960X-48LPS-L - Switch - managed - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop, rack-mountable - PoE+

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations.

  • Main Specifications
    • Limited lifetime warranty
    • Gigabit Ethernet
    • 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
    • 9216
    • Virtual interfaces (VLANs) : 1023
    • Switch - 48 ports - managed - stackable
    • IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
    • Limited lifetime warranty
    • Cisco Catalyst 2960X-48LPS-L - switch - 48 ports - managed - desktop, rack-mountable
    • 17.5 in x 14.5 in x 1.8 in
    • Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Cisco FlexStack Plus
    • 12.8 lbs
    • AC 120/230 V ( 50/60 Hz )
    • 370 W
    • Optional
    • Switching capacity : 216 Gbps ¦ Forwarding performance (64-byte packet size) : 107.1 Mpps
    • PoE+
    • Desktop, rack-mountable 1U
    • SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
  • General
    • Port status, link activity, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE
    • Desktop, rack-mountable - 1U
    • Switch - 48 ports - managed - stackable
    • Gigabit Ethernet
    • IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
    • 512 MB
    • SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
    • Virtual interfaces (VLANs) : 1023
    • 9216
    • 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
    • Kerberos, Secure Shell (SSH), RADIUS, TACACS+
    • PoE+
    • 370 W
    • 128 MB
    • : 600 MHz
    • Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Cisco FlexStack Plus
    • 8
    • Switching capacity : 216 Gbps ¦ Forwarding performance (64-byte packet size) : 107.1 Mpps
  • Miscellaneous
    • CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 300386
    • 276,870 hours
  • Environmental Parameters
    • 113 °F
    • 23 °F
    • 10 - 95% (non-condensing)
    • 158 °F
    • 10 - 95% (non-condensing)
    • -13 °F
  • Manufacturer Warranty
    • Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
    • Limited lifetime warranty
  • Expansion / Connectivity
    • 1 (total) / 1 (free) x Stacking Module slot
    • 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 - 12 ports (PoE+) / 48 ports (PoE) - 30 W ¦ 1 x console console - RJ-45 - RJ-45 ¦ 1 x mini-USB console - mini-USB Type B - Type B - management ¦ 2 x USB - Type A ¦ 1 x 1000Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 - management ¦ 4 x SFP (mini-GBIC) - SFP - uplink
  • Power
    • Internal power supply
    • AC 120/230 V ( 50/60 Hz )
    • Redundant Power System (RPS) connector
    • 1 (installed) / 2 (max)
    • 1+1 (with optional power supply)
    • Optional
  • Software / System Requirements
    • Cisco IOS LAN Base
  • Dimensions & Weight
    • 17.5 in
    • 14.5 in
    • 12.8 lbs
    • 1.8 in

SMARTnet list

SMARTnet Description Price
CON-3SNT-WSC248SL 3YR SNTC 8X5XNBD Catalyst 2960-X 48 G Inquiry
CON-SMBS-WSC248SL CSCO SUP ESS 8X5XNBD Cat 2960-X 48 GigE PoE 370W, 4 x 1G Inquiry
CON-SNT-WSC248SL SNTC-8X5XNBD Catalyst 2960-X 48 G Inquiry
CON-SNTE-WSC248SL SNTC-8X5X4 Catalyst 2960-X 48 GigE PoE 370W, 4 x 1G Inquiry
CON-SNTP-WSC248SL SNTC-24X7X4 Catalyst 2960-X 48 GigE PoE 370W, 4 x 1G Inquiry
CON-SSSNP-WSC248SL SOLN SUPP 24X7X4 Cat 2960S 48 GigE PoE 370W 2 x 10G SFP+ LAN Inquiry
CON-SSSNT-WSC248SL SOLN SUPP 8X5XNBD Catalyst 2960-X 48 GigE PoE 370W 4 x 1G S Inquiry
