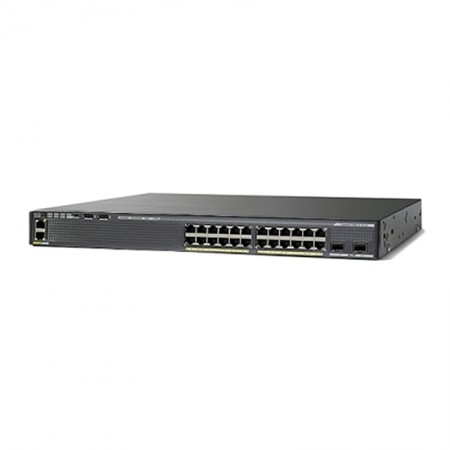

Cisco FlexStack-Plus stacking for Cisco Catalyst 2960-XR series switch provides a true stacking solution, with all switches in a FlexStack-Plus stack acting as a single switching unit. FlexStack-Plus provides a unified data plane and single configuration for a group of stacked Cisco Catalyst 2960-XR switch.
FlexStack-Plus lower the total cost of ownership with built-in 1: N redundancy, high availability, and preprovisioning, not available in standalone switches. High-availability features such as EtherChannel and FlexLinks will work across stack members, increasing uptime and network connectivity.
FlexStack-Plus is an improvement over FlexStack because it doubles the speed of the stack bandwidth and allows for more members to join the stack. The FlexStack-Plus bandwidth for a single stack member is 40 Gbps compared to 20 Gbps with FlexStack. With multiple stack members, the FlexStack-Plus bandwidth is 80 Gbps. With FlexStack-Plus technology, eight 2960-XR members can be joined into a single stack.
-
Capacity
- Virtual interfaces (VLANs)
- 1023
-
Dimensions & Weight
- 17.5 in
- 16.1 in
- 1.8 in
- 13.67 lbs
-
Environmental Parameters
- 23 °F
- 113 °F
- 10 - 95% (non-condensing)
- -13 °F
- 158 °F
- 10 - 95% (non-condensing)
-
Flash Memory
- 128 MB
-
Header
- PC
- Cisco Systems
- 1
- Cisco Catalyst
- 2960XR-24PS-I
- Cisco
-
Interface Provided
- Ethernet 10Base-T/100Base-TX/1000Base-T
- 4
- Mini-USB
- Type B
- Management
- 30 W
-
Miscellaneous
- AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2011/65/EU, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A
- Kerberos, RADIUS, Secure Shell (SSH), TACACS+
- 321,290 hours
- 1
-
Networking
- Switch
- Wired
- CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
- IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Link/activity, PoE, Port duplex mode, Port status, Port transmission speed, RPS (Redundant Power Supply), System
- 24
- Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Cisco EnergyWise technology, Cisco Fast EtherChannel, Cisco FlexStack Plus, Class of Service (CoS), DHCP snooping, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Hot Standby Router Protocol (HSRP) support, IGMP snooping, Intrusion Detection System (IDS), IPv4 support, IPv6 support, Jumbo Frames support, Layer 2 switching, Layer 3 load balancing, Link Aggregation Control Protocol (LACP), MAC Address Notification, MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, NetFlow, Per-VLAN Rapid Spanning Tree (PVRST), PoE+, Port Aggregation Protocol (PAgP) support, Power over Ethernet (PoE), Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Strict Priority Queuing (SPQ), Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Storm Control, VLAN support
- HSRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
- Stackable
- 8
- Network hubs and switches
- PoE+
- Layer 3
- Yes
- Desktop, Rack-mountable
- 9216 bytes
- Gigabit Ethernet
- 370 W
-
Performance
- Switching capacity
- 216 Gbps
-
Ports
- 24
- 10/100/1000 (PoE+)
-
Ports (2nd)
- 4
- Gigabit SFP
-
Power Device
- 50/60 Hz
- 640 Watt
- 1
- 2
- AC 120/230 V
- Redundant Power System (RPS) connector
- Optional
- 1+1 (with optional power supply)
- Internal power supply
-
Processor
- 600 MHz
-
RAM
- 512 MB
-
Service
- Technical support
- Consulting
- 90 days
-
Service & Support
- Limited lifetime warranty
-
Service & Support Details
- Next business day
-
Slot Provided
- Stacking Module slot
- 1
- 1
-
Software
- Cisco IOS IP Lite
SMARTnet list
| SMARTnet | Description | Price |
|---|---|---|
| CON-3SNT-WSC296PS | 3YR SNTC 8X5XNBD Cat 2960-XR 24 GigE PoE 370W, 4 x 1 | Inquiry |
| CON-SMBS-WSC296PS | CSCO SUP ESS 8X5XNBD Cat 2960-XR 24 GigE PoE 370W, 4 x 1 | Inquiry |
| CON-SNT-WSC296PS | SNTC-8X5XNBD Catalyst 2960-XR 24 GigE PoE 370W, 4 x 1 | Inquiry |
| CON-SNTE-WSC296PS | SNTC-8X5X4 Catalyst 2960-XR 24 GigE PoE 370W, 4 x 1 | Inquiry |
| CON-SNTP-WSC296PS | SNTC-24X7X4 Catalyst 2960-XR 24 GigE PoE 370W, 4 x 1 | Inquiry |
| CON-SSSNP-WSC296PS | SOLN SUPP 24X7X4 Catalyst 2960S 24 GigE, 4 x SFP LAN Base | Inquiry |
| CON-SSSNT-WSC296PS | SOLN SUPP 8X5XNBD Catalyst 2960-XR 24 GigE PoE 370W 4 x 1G | Inquiry |
