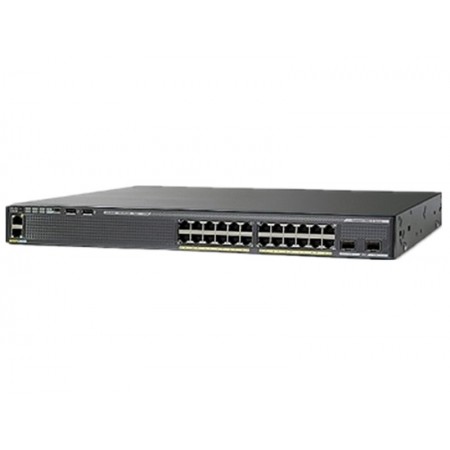

WS-C2960XR-24TS-I

WS-C2960XR-24TS-I

0 Review

List Price:	$4,495.00
Price:	$730.00 (84% OFF)
Condition:	New
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

Catalyst 2960-XR 24 GigE, 4 x 1G SFP, IP Lite

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

Cisco Catalyst 2960-X series switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, it enables scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS software features.

Environmental Parameters
- Min Operating Temperature23 °F
- Max Operating Temperature113 °F
- Humidity Range Operating10 - 95% (non-condensing)
- Min Storage Temperature-13 °F
- Max Storage Temperature158 °F
- Humidity Range Storage10 - 95% (non-condensing)
Header
- CompatibilityPC
- ManufacturerCisco Systems
- Packaged Quantity1
- Product LineCisco Catalyst
- Model2960XR-24TS-I
- BrandCisco
Interface Provided
- Qty4
- Type100Base-TX
- Connector TypeType B
- CommentsManagement
Miscellaneous
- Rack Mounting KitIncluded
- Compliant StandardsAS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, RoHS 2011/65/EU, UL 60950-1 Second Edition, VCCI Class A
- Authentication MethodKerberos, RADIUS, Secure Shell (SSH), TACACS+
- MTBF557,320 hours
- Height (Rack Units)1
- Color CategoryGray
Networking
- TypeSwitch
- Connectivity TechnologyWired
- Remote Management ProtocolCLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
- Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Status IndicatorsLink/activity, Port duplex mode, Port status, Port transmission speed, System
- Ports Qty24
- FeaturesAccess Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, Cisco EnergyWise technology, Cisco Fast EtherChannel, Cisco FlexStack Plus, Cisco Gigabit EtherChannel, Class of Service (CoS), DHCP relay, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Full duplex capability, Hot Standby Router Protocol (HSRP) support, IGMP filtering, IGMP snooping, IPv6 support, Jumbo Frames support, Layer 2 switching, Layer 3 load balancing, Link Aggregation Control Protocol (LACP), MAC Address Notification, MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, NetFlow, Per-VLAN Rapid Spanning Tree (PVRST), Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), Unicast Storm Control, VLAN support
- Routing ProtocolHSRP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
- StackableStackable
- Max Units In A Stack8
- SubcategoryNetwork hubs and switches
- Power Over Ethernet (PoE)No
- Advanced SwitchingLayer 3
- ManageableYes
- Form FactorDesktop, Rack-mountable
- Jumbo Frame Support9216 bytes
- SubtypeGigabit Ethernet
Power Device
- Frequency Required50/60 Hz
- Power Provided250 Watt
- Installed Qty1
- Max Supported Qty2
- Nominal VoltageAC 120/230 V
- Power RedundancyOptional
- Power Redundancy Scheme1+1 (with optional power supply)
- TypeInternal power supply
Processor
- Clock Speed600 MHz
Service
- Support Details TypeTechnical support
- Support Details Service IncludedConsulting
- Support Details Full Contract Period90 days
Service & Support Details
- Response TimeNext business day
Slot Provided
- TypeStacking Module slot
- Total Qty1
- Free Qty1
Software
- TypeCisco IOS IP Lite
Dimensions & Weight
- Width17.5 in
- Depth16.1 in
- Height1.8 in
- Weight13.01 lbs
Service & Support
- TypeLimited lifetime warranty
Capacity
- TypeActive VLANs
- Value1023
Flash Memory
- Installed Size128 MB
Performance
- TypeSwitching capacity
- Value216 Gbps
Ports
- Qty24
- Type10/100/1000
Ports (2nd)
- Qty4
- TypeSFP (mini-GBIC)
RAM
- Installed Size512 MB

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WS296X24	3YR SNTC 8X5XNBD Cat 2960-XR 24 GigE, 4 x 1G SFP, IP	Inquiry
CON-SMBS-WS296X24	CSCO SUP ESS 8X5XNBD Cat 2960-XR 24 GigE, 4 x 1G SFP, IP	Inquiry
CON-SNT-WS296X24	SNTC-8X5XNBD Catalyst 2960-XR 24 GigE, 4 x 1G SFP, IP	Inquiry
CON-SNTE-WS296X24	SNTC-8X5X4 Catalyst 2960-XR 24 GigE, 4 x 1G SFP, IP	Inquiry
CON-SNTP-WS296X24	SNTC-24X7X4 Catalyst 2960-XR 24 GigE, 4 x 1G SFP, IP	Inquiry
CON-SSSNT-WS296X24	SOLN SUPP 8X5XNBD Catalyst 2960-XR 24 GigE 4 x 1G SFP IP L	Inquiry
