WS-C2960XR-48TD-I

WS-C2960XR-48TD-I

0 Review

List Price:	$8,695.00
Price:	$2,434.60 (72% OFF)
Condition:	Brand New Sealed
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

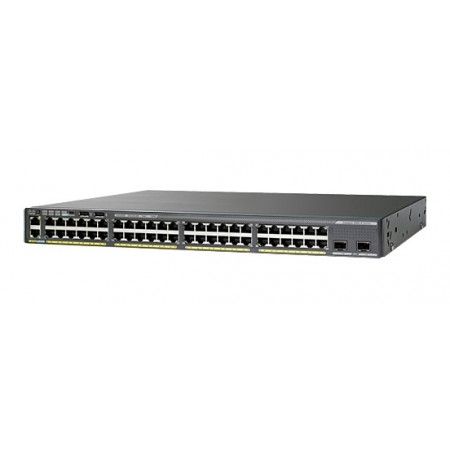

Cisco Catalyst 2960XR-48TD-I - Switch - L3 - managed - 48 x 10/100/1000 + 2 x SFP+ - desktop, rack-mountable

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable s

Main Specifications
- Bundled Services Limited lifetime warranty
- Routing Protocol OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
- Jumbo Frame Support 9216 bytes
- Ports 48 x 10/100/1000 + 2 x SFP+
- Device Type Switch - 48 ports - L3 - managed - stackable
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az
- Capacity Virtual interfaces (VLANs) : 1023
- Weight 13.4 lbs
- Features Layer 2 switching, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS)
- Dimensions (WxDxH) 17.5 in x 16.1 in x 1.8 in
- Manufacturer Warranty Limited lifetime warranty
- Product Description Cisco Catalyst 2960XR-48TD-I - switch - 48 ports - managed - desktop, rack-mountable
- Power AC 120/230 V ( 50/60 Hz )
- Power Redundancy Yes
- Enclosure Type Desktop, rack-mountable 1U
- Subtype Gigabit Ethernet
- Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
- Performance Switching capacity : 216 Gbps ¦ Forwarding performance : 130.9 Mpps
Dimensions & Weight
- Depth 16.1 in
- Weight 13.4 lbs
- Height 1.8 in
- Width 17.5 in
General
- Max Units In A Stack 8
- Processor 1 x ARM : 600 MHz
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az
- Features Layer 2 switching, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS)
- Status Indicators Port status, link activity, port transmission speed, port duplex mode, system
- Device Type Switch - 48 ports - L3 - managed - stackable
- Enclosure Type Desktop, rack-mountable - 1U
- Subtype Gigabit Ethernet
- Performance Switching capacity : 216 Gbps ¦ Forwarding performance : 130.9 Mpps
- Routing Protocol OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
- Flash Memory 128 MB
- Ports 48 x 10/100/1000 + 2 x SFP+
- Jumbo Frame Support 9216 bytes
- RAM 512 MB
- Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
- Capacity Virtual interfaces (VLANs) : 1023
- Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Power
- Voltage Required AC 120/230 V ( 50/60 Hz )
- Power Device Internal power supply - hot-plug
- Installed Qty 1 (installed) / 2 (max)
- Power Provided 250 Watt
- Power Redundancy Scheme 1+1
- Power Redundancy Yes
Miscellaneous
- Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, CB, ICES-003 Class A, RoHS, EN300-386, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, KN22, KN24
- MTBF 440,880 hours
Software / System Requirements
- Software Included Cisco IOS IP Lite
Environmental Parameters
- Humidity Range Storage 10 - 95% (non-condensing)
- Max Storage Temperature 158 °F
- Min Storage Temperature -13 °F
- Humidity Range Operating 10 - 95% (non-condensing)
- Min Operating Temperature 23 °F
- Max Operating Temperature 113 °F
Expansion / Connectivity
- Interfaces 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP+ ¦ 1 x USB - Type A ¦ 1 x USB - Type B ¦ 1 x console - RJ-45 ¦ 1 x management (LAN) - RJ-45
Manufacturer Warranty
- Service & Support Limited lifetime warranty
- Service & Support Details Limited warranty - lifetime

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WSC2968T	3YR SNTC 8X5XNBD Catalyst 2960-XR 48	Inquiry
CON-SMBS-WSC2968T	CSCO SUP ESS 8X5XNBD Catalyst 2960-XR 48	Inquiry
CON-SNT-WSC2968T	SNTC-8X5XNBD Catalyst 2960-XR 48	Inquiry
CON-SNTE-WSC2968T	SNTC-8X5X4 Catalyst 2960-XR 48	Inquiry
CON-SNTP-WSC2968T	SNTC-24X7X4 Catalyst 2960-XR 48	Inquiry
CON-SSSNP-WSC2968T	SOLN SUPP 24X7X4 Catalyst 2960S 48 GigE, 4 x SFP LAN Base	Inquiry
CON-SSSNT-WSC2968T	SOLN SUPP 8X5XNBD Catalyst 2960-XR 48 GigE 2 x 10G SFP+ IP	Inquiry
