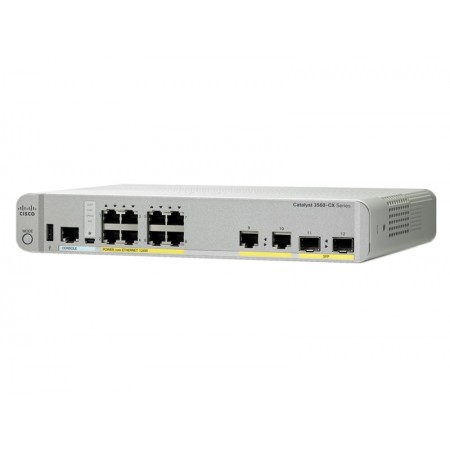

The Cisco Catalyst 3560-CX series compact switches help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi back haul, and Power over Ethernet (PoE) connectivity in places where space is at a premium. Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints. With their quiet, fan-less design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations.
-
Dimensions & Weight
- 10.6 in
- 9.4 in
- 1.7 in
- 5 lbs
-
Environmental Parameters
- 23 °F
- 113 °F
- 5 - 95% (non-condensing)
- -13 °F
- 158 °F
- 5 - 95% (non-condensing)
-
Flash Memory
- 128 MB
-
Header
- PC
- Cisco Systems
- 1
- Cisco Catalyst
- 3560CX-8PC-S
- Cisco
-
Interface Provided
- 8
- PoE+
- 1000Base-T
- SFP
-
Miscellaneous
- AS/NZ 3548 Class A, CB, CSA C22.2 No. 60950-00, cUL, EN 60950, EN55022, EN55024, FCC Class A certified, FCC Part 15, IEC 60950, MIC, NOM, TUV GS, UL, UL 60950 Third Edition, VCCI Class A ITE
- Kerberos, RADIUS, Secure Shell v.2 (SSH2), TACACS+
- 569,530 hours
- 1
- Gray
-
Performance
- Forwarding performance (64-byte packet size)
- 17.9 Mpps
-
Ports
- 8
- 10/100/1000 (PoE+)
-
Ports (2nd)
- 2
- Combo Gigabit SFP
-
Power Device
- 50/60 Hz
- 25.4 Watt
- AC 120/230 V
- Internal power supply
-
RAM
- 512 MB
-
Service & Support
- Limited lifetime warranty
-
Software
- Cisco IOS IP Base
-
Networking
- Switch
- Wired
- HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Link OK, Port duplex mode, Port status, Port transmission speed, Power, System
- 8
- Access Control List (ACL) support, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), DHCP server, DHCP snooping, DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Full duplex capability, IGMP snooping, IP-routing, Layer 2 switching, Layer 3 switching, Manageable, MLD snooping, MPLS support, Port Aggregation Protocol (PAgP) support, Power over Ethernet (PoE), Quality of Service (QoS), Time Domain Reflectometry (TDR), Traffic shaping, Trivial File Transfer Protocol (TFTP) support, Trunking, Virtual Route Forwarding-Lite (VRF-Lite), VLAN support
- RIP-1, RIP-2, Static IP routing
- Network hubs and switches
- PoE+
- Layer 3
- Yes
- Desktop
- Gigabit Ethernet
- 240 W
SMARTnet list
| SMARTnet | Description | Price |
|---|---|---|
| CON-SMBS-WSC38PCS | CSCO SUP ESS 8X5XNBD Cisco Cat 3560-CX 8 Port PoE IP Bas | Inquiry |
| CON-SNT-WSC38PCS | SNTC-8X5XNBD Cisco Catalyst 3560-CX 8 Port PoE IP Bas | Inquiry |
| CON-SNTE-WSC38PCS | SNTC-8X5X4 Cisco Catalyst 3560-CX 8 Port PoE IP Bas | Inquiry |
| CON-SNTP-WSC38PCS | SNTC-24X7X4 Cisco Catalyst 3560-CX 8 Port PoE IP Bas | Inquiry |
| CON-SSSNP-WSC38PCS | SOLN SUPP 24X7X4 Catalyst 2960-XR 24 GigE, 2 x 10G SFP+, IP | Inquiry |
| CON-SSSNT-WSC38PCS | SOLN SUPP 8X5XNBD Cisco Catalyst 3560-CX 8 Port PoE IP Base | Inquiry |
