WS-C3850-12X48U-L

WS-C3850-12X48U-L

0 Review

List Price:	$12,750.00
Price:	$3,200.00 (75% OFF)
Condition:	New
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

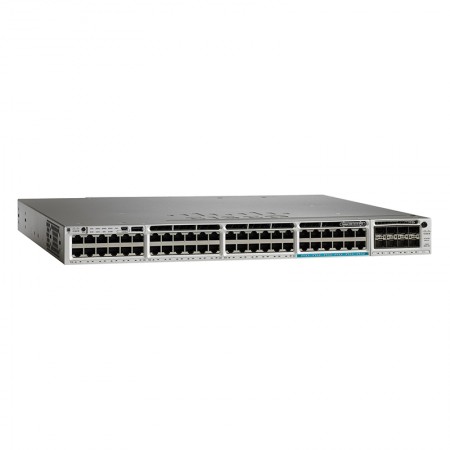

Cisco Catalyst WS-C3850-12X48U-L Switch 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports,LAN Base feature set

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

Cisco unified access is the convergence of the wired and wireless networks into one physical infrastructure. It offers greater intelligence, simplicity, performance, and open interfaces. One network starts with Cisco Catalyst 3850 switches, which combine wired and wireless by supporting wireless tunnel termination and full wireless LAN controller functionality.

The Catalyst 3850 series switches are Ethernet switches to which you can connect devices such as Cisco IP phones, Cisco wireless access points, workstations, and other network devices such as servers, routers, and other switches. The Catalyst 3850 switches support stacking through Cisco StackWise-480 technology and power management through StackPower.

Capacity
- TypeSwitched virtual interfaces (SVIs)
- Value1000
Dimensions & Weight
- Width17.5 in
- Depth19.2 in
- Height1.8 in
- Weight17.64 lbs
Environmental Parameters
- Min Operating Temperature23 °F
- Max Operating Temperature113 °F
- Humidity Range Operating10 - 95% (non-condensing)
- Min Storage Temperature-40 °F
- Max Storage Temperature158 °F
Flash Memory
- Installed Size2 GB
Header
- CompatibilityPC
- ManufacturerCisco Systems
- Packaged Quantity1
- Product LineCisco Catalyst
- Model3850-48U-L
- BrandCisco
Interface Provided
- Qty36
- TypeManagement (mini-USB)
- Connector TypeType B
- CommentsManagement
- PoE Power60 W
Miscellaneous
- Compliant StandardsCISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A
- Authentication MethodKerberos, RADIUS, Secure Shell (SSH), TACACS+
- MTBF202,030 hours
- Height (Rack Units)1
- Color CategoryGray
Networking
- TypeSwitch
- Connectivity TechnologyWired/Wireless
- Remote Management ProtocolCLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
- Compliant StandardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Status IndicatorsPoE, Port duplex mode, Port transmission speed, Status, System
- Ports Qty48
- FeaturesAccess Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Cisco StackPower technology, Cisco StackWise-480 technology, DHCP snooping, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Flexible NetFlow (FNF), IGMP snooping, IPv4 support, IPv6 support, Layer 3 load balancing, Link Aggregation Control Protocol (LACP), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), STP Root Guard, Syslog support, Trivial File Transfer Protocol (TFTP) support, Trunking, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), VLAN support
- Routing ProtocolEIGRP, RIP-1, RIP-2, RIPng
- MAC Address Table Size32000 entries
- StackableStackable
- SubcategoryNetwork hubs and switches
- Power Over Ethernet (PoE)UPOE
- Advanced SwitchingLayer 3
- ManageableYes
- Form FactorDesktop, Rack-mountable
- Jumbo Frame Support9198 bytes
- SubtypeGigabit Ethernet
- PoE Budget630 W
Performance
- TypeSwitching capacity
- Value176 Gbps
Ports
- Qty48
- Type10/100/1000 (UPOE)
Power Device
- Frequency Required50/60 Hz
- Power Provided1100 Watt
- Installed Qty1
- Max Supported Qty2
- Nominal VoltageAC 120/230 V
- Power RedundancyOptional
- Power Redundancy Scheme1+1 (with optional power supply)
- TypeInternal power supply
RAM
- Installed Size4 GB
Service
- Support Details TypeTechnical support
- Support Details Service IncludedConsulting
- Support Details Full Contract Period90 days
Service & Support
- TypeLimited lifetime warranty
Service & Support Details
- Response TimeNext business day
Slot Provided
- TypeExpansion slot
- Total Qty1
- Free Qty1
Software
- TypeCisco IOS LAN Base

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WSC3851L	3YR SNTC 8X5XNBD Cisco Catalyst 3850 48 Port (12 mGig+36	Inquiry
CON-SMBS-WSC3851L	CSCO SUP ESS 8X5XNBD Cisco Catalyst 3850 48 Port (12 mGig+36	Inquiry
CON-SNT-WSC3851L	SNTC-8X5XNBD Cisco Catalyst 3850 48 Port (12 mGig+36	Inquiry
CON-SNTE-WSC3851L	SNTC-8X5X4 Cisco Catalyst 3850 48 Port (12 mGig+36	Inquiry
CON-SNTP-WSC3851L	SNTC-24X7X4 Cisco Catalyst 3850 48 Port (12 mGig+36	Inquiry
CON-SSSNP-WSC3851L	SOLN SUPP 24X7X4 Cisco Catalyst 3850 48 Port (12 mGig+36	Inquiry
CON-SSSNT-WSC3851L	SOLN SUPP 8X5XNBD Cisco Catalyst 3850 48 Port (12 mGig+36	Inquiry
