WS-C3850-24T-S

WS-C3850-24T-S

0 Review

List Price:	$6,630.00
Price:	$1,800.00 (73% OFF)
Condition:	New
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

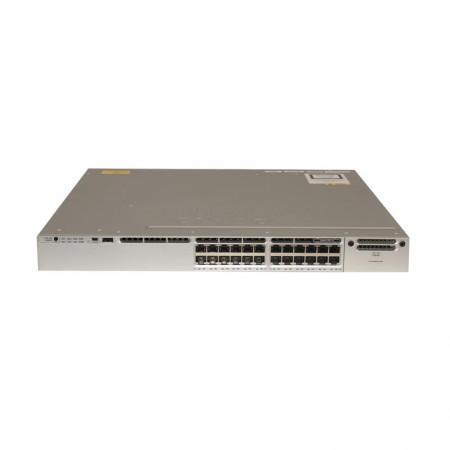

Cisco Catalyst 3850-24T-S - Switch - L3 - managed - 24 x 10/100/1000 - desktop, rack-mountable

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization.

Main Specifications
- Bundled Services Limited lifetime warranty
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 24000 ¦ Switched virtual interfaces (SVIs) : 1000
- Power AC 120/230 V ( 50/60 Hz )
- Device Type Switch - 24 ports - L3 - managed - stackable
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- Subtype Gigabit Ethernet
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Dimensions (WxDxH) 17.5 in x 17.7 in x 1.8 in
- Weight 15.9 lbs
- Product Description Cisco Catalyst 3850-24T-S - switch - 24 ports - managed - desktop, rack-mountable
- Manufacturer Warranty Limited lifetime warranty
- Power Redundancy Optional
- Ports 24 x 10/100/1000
- Jumbo Frame Support 9198
- MAC Address Table Size 32000 entries
- Enclosure Type Desktop, rack-mountable 1U
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Performance Switching capacity : 88 Gbps ¦ Stacking bandwidth : 480 Gbps
- Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
General
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Performance Switching capacity : 88 Gbps ¦ Stacking bandwidth : 480 Gbps
- Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
- Status Indicators Port transmission speed, port duplex mode, system, status
- Enclosure Type Desktop, rack-mountable - 1U
- Device Type Switch - 24 ports - L3 - managed - stackable
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 24000 ¦ Switched virtual interfaces (SVIs) : 1000
- RAM 4 GB
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Subtype Gigabit Ethernet
- Jumbo Frame Support 9198
- Ports 24 x 10/100/1000
- Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Flash Memory 2 GB
- MAC Address Table Size 32000 entries
Miscellaneous
- Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
- MTBF 303,230 hours
Manufacturer Warranty
- Service & Support Details Limited warranty - lifetime ¦ Technical support - consulting - 90 days
- Service & Support Limited lifetime warranty
Power
- Power Provided 350 Watt
- Power Redundancy Scheme 1+1 (with optional power supply)
- Power Redundancy Optional
- Installed Qty 1 (installed) / 2 (max)
- Power Device Internal power supply
- Voltage Required AC 120/230 V ( 50/60 Hz )
Environmental Parameters
- Max Operating Temperature 113 °F
- Min Operating Temperature 23 °F
- Humidity Range Operating 10 - 95% (non-condensing)
- Max Storage Temperature 158 °F
- Min Storage Temperature -40 °F
Dimensions & Weight
- Depth 17.7 in
- Height 1.8 in
- Weight 15.9 lbs
- Width 17.5 in
Expansion / Connectivity
- Expansion Slots 1 (total) / 1 (free) x expansion slot
- Interfaces 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB - Type A ¦ 1 x console - mini-USB Type B - management ¦ 1 x RS-232 - RJ-45 - management ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management ¦ 2 x network stack device
Software / System Requirements
- Software Included Cisco IOS IP Base

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WSC384TS	3YR SNTC 8X5XNBD Cisco Catalyst 3850 24 Pt Data IP Base	Inquiry
CON-SMBS-WSC384TS	CSCO SUP ESS 8X5XNBD Cisco Cat 3850 24 Port Data IP Base	Inquiry
CON-SNT-WSC384TS	SNTC-8X5XNBD Cisco Catalyst 3850 24 Port Data IP Base	Inquiry
CON-SNTE-WSC384TS	SNTC-8X5X4 Cisco Catalyst 3850 24 Port Data IP Base	Inquiry
CON-SNTP-WSC384TS	SNTC-24X7X4 Cisco Catalyst 3850 24 Port Data IP Base	Inquiry
CON-SSSNP-WSC384TS	SOLN SUPP 24X7X4 Cisco Catalyst 3650 48 Port Data 2x10G Upli	Inquiry
CON-SSSNT-WSC384TS	SOLN SUPP 8X5XNBD Cisco Catalyst 3850 24 Port Data IP Base	Inquiry
