WS-C3850-48F-S

WS-C3850-48F-S

0 Review

List Price:	$14,280.00
Price:	$0.00
Condition:	Brand New Sealed
Availability:	Out of Stock
Shipping:	2~6 days Arrival via DHL

Estimate Shipping:

Quick Overview

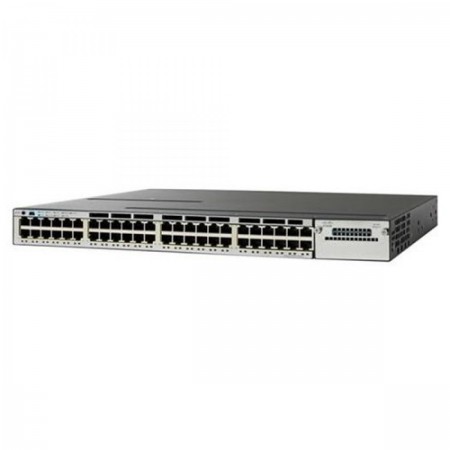

Cisco Catalyst 3850-48F-S - Switch - L3 - managed - 48 x 10/100/1000 - desktop, rack-mountable - PoE+

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Ciscos Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.

3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.

Main Specifications
- Bundled Services Limited lifetime warranty
- Power Over Ethernet (PoE) PoE+
- Performance Switching capacity : 176 Gbps ¦ Stacking bandwidth : 480 Gbps
- Enclosure Type Desktop, rack-mountable 1U
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Power AC 120/230 V ( 50/60 Hz )
- Device Type Switch - 48 ports - L3 - managed - stackable
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
- PoE Budget 800 W
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 48000 ¦ Switched virtual interfaces (SVIs) : 1000
- Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
- Power Redundancy Optional
- Subtype Gigabit Ethernet
- Manufacturer Warranty Limited lifetime warranty
- Product Description Cisco Catalyst 3850-48F-S - switch - 48 ports - managed - desktop, rack-mountable
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Weight 17.6 lbs
- Dimensions (WxDxH) 17.5 in x 18.9 in x 1.8 in
- Ports 48 x 10/100/1000 (PoE+)
- Jumbo Frame Support 9198
- MAC Address Table Size 32000 entries
Miscellaneous
- MTBF 241,050 hours
- Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
General
- Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- MAC Address Table Size 32000 entries
- Flash Memory 2 GB
- Power Over Ethernet (PoE) PoE+
- Jumbo Frame Support 9198
- Ports 48 x 10/100/1000 (PoE+)
- PoE Budget 800 W
- Performance Switching capacity : 176 Gbps ¦ Stacking bandwidth : 480 Gbps
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
- Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
- Subtype Gigabit Ethernet
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 48000 ¦ Switched virtual interfaces (SVIs) : 1000
- RAM 4 GB
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Enclosure Type Desktop, rack-mountable - 1U
- Status Indicators Port transmission speed, port duplex mode, system, status, PoE
- Device Type Switch - 48 ports - L3 - managed - stackable
Power
- Power Redundancy Scheme 1+1 (with optional power supply)
- Power Redundancy Optional
- Installed Qty 1 (installed) / 2 (max)
- Voltage Required AC 120/230 V ( 50/60 Hz )
- Power Device Internal power supply
- Power Provided 1100 Watt
Manufacturer Warranty
- Service & Support Details Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
- Service & Support Limited lifetime warranty
Expansion / Connectivity
- Expansion Slots 1 (total) / 1 (free) x expansion slot
- Interfaces 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE+ - 30 W ¦ 1 x USB - Type A ¦ 1 x console - mini-USB Type B - management ¦ 1 x RS-232 - RJ-45 - management ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management ¦ 2 x network stack device
Environmental Parameters
- Max Storage Temperature 158 °F
- Min Storage Temperature -40 °F
- Min Operating Temperature 23 °F
- Max Operating Temperature 113 °F
- Humidity Range Operating 10 - 95% (non-condensing)
Software / System Requirements
- Software Included Cisco IOS IP Base
Dimensions & Weight
- Width 17.5 in
- Depth 18.9 in
- Height 1.8 in
- Weight 17.6 lbs

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WSC388FS	3YR SNTC 8X5XNBD Cisco Catalyst 3850 48 Port Full PoE IP	Inquiry
CON-SMBS-WSC388FS	CSCO SUP ESS 8X5XNBD Cisco Catalyst 3850 48 Port Full PoE IP	Inquiry
CON-SNT-WSC388FS	SNTC-8X5XNBD Cisco Catalyst 3850 48 Port Full PoE IP	Inquiry
CON-SNTE-WSC388FS	SNTC-8X5X4 Cisco Catalyst 3850 48 Port Full PoE IP	Inquiry
CON-SNTP-WSC388FS	SNTC-24X7X4 Cisco Catalyst 3850 48 Port Full PoE IP	Inquiry
CON-SSSNP-WSC388FS	SOLN SUPP 24X7X4 Cisco Catalyst 3650 48 Port Full PoE 4x1G U	Inquiry
CON-SSSNT-WSC388FS	SOLN SUPP 8X5XNBD Cisco Catalyst 3850 48 Port Full PoE IP Ba	Inquiry
