WS-C3850-48P-L

WS-C3850-48P-L

0 Review

List Price:	$10,610.00
Price:	$2,200.00 (79% OFF)
Condition:	New
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

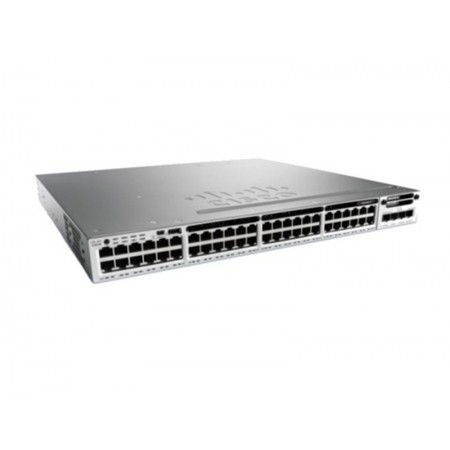

Cisco Catalyst 3850-48P-L - Switch - managed - 48 x 10/100/1000 (PoE+) - desktop, rack-mountable - PoE+

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Ciscos Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) po

Main Specifications
- Bundled Services Limited lifetime warranty
- PoE Budget 435 W
- Jumbo Frame Support 9198 bytes
- MAC Address Table Size 32000 entries
- Ports 48 x 10/100/1000 (PoE+)
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
- Device Type Switch - 48 ports - managed - stackable
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 48000 ¦ Switched virtual interfaces (SVIs) : 1000
- Power Redundancy Optional
- Subtype Gigabit Ethernet
- Manufacturer Warranty Limited lifetime warranty
- Product Description Cisco Catalyst 3850-48P-L - switch - 48 ports - managed - desktop, rack-mountable
- Weight 17.4 lbs
- Dimensions (WxDxH) 17.5 in x 17.7 in x 1.8 in
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Power AC 120/230 V ( 50/60 Hz )
- Performance Switching capacity : 176 Gbps ¦ Stacking bandwidth : 480 Gbps
- Power Over Ethernet (PoE) PoE+
- Enclosure Type Desktop, rack-mountable 1U
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
General
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Status Indicators Port transmission speed, port duplex mode, system, status, PoE
- Enclosure Type Desktop, rack-mountable - 1U
- Device Type Switch - 48 ports - managed - stackable
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
- Subtype Gigabit Ethernet
- Performance Switching capacity : 176 Gbps ¦ Stacking bandwidth : 480 Gbps
- MAC Address Table Size 32000 entries
- Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Flash Memory 2 GB
- Power Over Ethernet (PoE) PoE+
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- RAM 4 GB
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 48000 ¦ Switched virtual interfaces (SVIs) : 1000
- Jumbo Frame Support 9198 bytes
- Ports 48 x 10/100/1000 (PoE+)
- PoE Budget 435 W
Dimensions & Weight
- Depth 17.7 in
- Height 1.8 in
- Weight 17.4 lbs
- Width 17.5 in
Power
- Installed Qty 1 (installed) / 2 (max)
- Power Device Internal power supply
- Voltage Required AC 120/230 V ( 50/60 Hz )
- Power Provided 715 Watt
- Power Redundancy Optional
- Power Redundancy Scheme 1+1 (with optional power supply)
Software / System Requirements
- Software Included Cisco IOS LAN Base
Miscellaneous
- Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
- MTBF 241,050 hours
Environmental Parameters
- Min Storage Temperature -40 °F
- Max Storage Temperature 158 °F
- Max Operating Temperature 113 °F
- Min Operating Temperature 23 °F
- Humidity Range Operating 10 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE+ - 30 W ¦ 1 x USB - Type A ¦ 1 x console - mini-USB Type B - management ¦ 1 x RS-232 - RJ-45 - management ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management ¦ 2 x network stack device
- Expansion Slots 1 (total) / 1 (free) x expansion slot
Manufacturer Warranty
- Service & Support Limited lifetime warranty
- Service & Support Details Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WSC388PL	3YR SNTC 8X5XNBD Cisco Catalyst 3850 48 Pt PoE LAN Base	Inquiry
CON-SMBS-WSC388PL	CSCO SUP ESS 8X5XNBD Cisco Cat 3850 48 Port PoE LAN Base	Inquiry
CON-SNT-WSC388PL	SNTC-8X5XNBD Cisco Catalyst 3850 48 Port PoE LAN Base	Inquiry
CON-SNTE-WSC388PL	SNTC-8X5X4 Cisco Catalyst 3850 48 Port PoE LAN Base	Inquiry
CON-SNTP-WSC388PL	SNTC-24X7X4 Cisco Catalyst 3850 48 Port PoE LAN Base	Inquiry
CON-SSSNP-WSC388PL	SOLN SUPP 24X7X4 Cisco Catalyst 3650 48 Port PoE 4x10G Uplin	Inquiry
CON-SSSNT-WSC388PL	SOLN SUPP 8X5XNBD Cisco Catalyst 3850 48 Port PoE LAN Base	Inquiry
