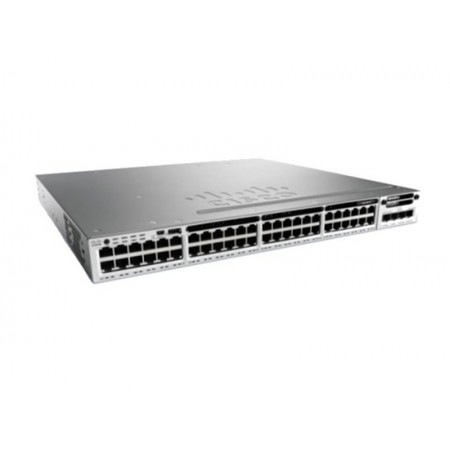

WS-C3850-48P-S

WS-C3850-48P-S

0 Review

List Price:	$13,260.00
Price:	$3,978.00 (70% OFF)
Condition:	Brand New Sealed
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

Cisco Catalyst 3850-48P-S - Switch - L3 - managed - 48 x 10/100/1000 (PoE+) - desktop, rack-mountable - PoE+

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

Cisco Catalyst 3850-48P-S - Switch - L3 - managed - 48 x 10/100/1000 (PoE+) - desktop, rack-mountable - PoE+

Main Specifications
- Bundled Services Limited lifetime warranty
- Device Type Switch - 48 ports - L3 - managed - stackable
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 48000 ¦ Switched virtual interfaces (SVIs) : 1000
- Weight 17.4 lbs
- Dimensions (WxDxH) 17.5 in x 17.7 in x 1.8 in
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Subtype Gigabit Ethernet
- Manufacturer Warranty Limited lifetime warranty
- Product Description Cisco Catalyst 3850-48P-S - switch - 48 ports - managed - desktop, rack-mountable
- Power AC 120/230 V ( 50/60 Hz )
- Power Redundancy Optional
- Jumbo Frame Support 9198
- Ports 48 x 10/100/1000 (PoE+)
- MAC Address Table Size 32000 entries
- PoE Budget 435 W
- Performance Switching capacity : 176 Gbps ¦ Stacking bandwidth : 480 Gbps
- Power Over Ethernet (PoE) PoE+
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Enclosure Type Desktop, rack-mountable 1U
- Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
General
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
- Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
- Performance Switching capacity : 176 Gbps ¦ Stacking bandwidth : 480 Gbps
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Status Indicators Port transmission speed, port duplex mode, system, status, PoE
- Enclosure Type Desktop, rack-mountable - 1U
- Device Type Switch - 48 ports - L3 - managed - stackable
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 48000 ¦ Switched virtual interfaces (SVIs) : 1000
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- RAM 4 GB
- Subtype Gigabit Ethernet
- Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Flash Memory 2 GB
- MAC Address Table Size 32000 entries
- Power Over Ethernet (PoE) PoE+
- Ports 48 x 10/100/1000 (PoE+)
- Jumbo Frame Support 9198
- PoE Budget 435 W
Miscellaneous
- Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
- MTBF 241,050 hours
Environmental Parameters
- Humidity Range Operating 10 - 95% (non-condensing)
- Min Operating Temperature 23 °F
- Max Operating Temperature 113 °F
- Max Storage Temperature 158 °F
- Min Storage Temperature -40 °F
Power
- Power Provided 715 Watt
- Power Redundancy Optional
- Power Redundancy Scheme 1+1 (with optional power supply)
- Voltage Required AC 120/230 V ( 50/60 Hz )
- Power Device Internal power supply
- Installed Qty 1 (installed) / 2 (max)
Manufacturer Warranty
- Service & Support Details Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
- Service & Support Limited lifetime warranty
Dimensions & Weight
- Height 1.8 in
- Depth 17.7 in
- Weight 17.4 lbs
- Width 17.5 in
Expansion / Connectivity
- Interfaces 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE+ - 30 W ¦ 1 x USB - Type A ¦ 1 x console - mini-USB Type B - management ¦ 1 x RS-232 - RJ-45 - management ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management ¦ 2 x network stack device
- Expansion Slots 1 (total) / 1 (free) x expansion slot
Software / System Requirements
- Software Included Cisco IOS IP Base

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WSC388PS	3YR SNTC 8X5XNBD Cisco Catalyst 3850 48 Port PoE IP Base	Inquiry
CON-SMBS-WSC388PS	CSCO SUP ESS 8X5XNBD Cisco Catalyst 3850 48 Port PoE IP Base	Inquiry
CON-SNT-WSC388PS	SNTC-8X5XNBD Cisco Catalyst 3850 48 Port PoE IP Base	Inquiry
CON-SNTE-WSC388PS	SNTC-8X5X4 Cisco Catalyst 3850 48 Port PoE IP Base	Inquiry
CON-SNTP-WSC388PS	SNTC-24X7X4 Cisco Catalyst 3850 48 Port PoE IP Base	Inquiry
CON-SSSNP-WSC388PS	SOLN SUPP 24X7X4 Cisco Catalyst 3650 48 Port PoE 2x10G Uplin	Inquiry
CON-SSSNT-WSC388PS	SOLN SUPP 8X5XNBD Cisco Catalyst 3850 48 Port PoE IP Base	Inquiry
