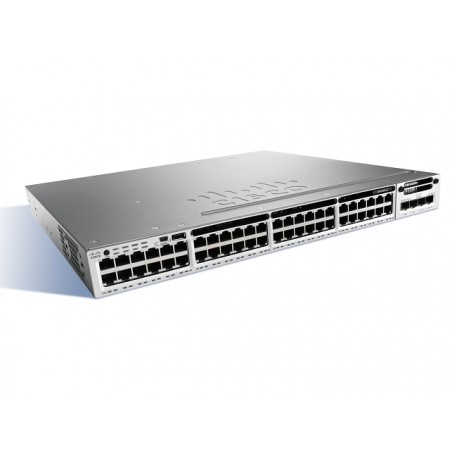

WS-C3850-48T-E

WS-C3850-48T-E

0 Review

List Price:	$19,890.00
Price:	$4,972.50 (75% OFF)
Condition:	Brand New Sealed
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

Cisco Catalyst 3850-48T-E - Switch - L3 - managed - 48 x 10/100/1000 - desktop, rack-mountable

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

Cisco Catalyst 3850-48T-E - Switch - L3 - managed - 48 x 10/100/1000 - desktop, rack-mountable

Main Specifications
- Bundled Services Limited lifetime warranty
- Manufacturer Warranty Limited lifetime warranty
- Product Description Cisco Catalyst 3850-48T-E - switch - 48 ports - managed - desktop, rack-mountable
- Subtype Gigabit Ethernet
- Weight 17 lbs
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 48000 ¦ Switched virtual interfaces (SVIs) : 1000
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- Device Type Switch - 48 ports - L3 - managed - stackable
- Power AC 120/230 V ( 50/60 Hz )
- Dimensions (WxDxH) 17.5 in x 17.7 in x 1.8 in
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Power Redundancy Optional
- MAC Address Table Size 32000 entries
- Ports 48 x 10/100/1000
- Jumbo Frame Support 9198
- Performance Switching capacity : 176 Gbps ¦ Stacking bandwidth : 480 Gbps
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Enclosure Type Desktop, rack-mountable 1U
- Routing Protocol BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng
General
- Status Indicators Port transmission speed, port duplex mode, system, status
- Device Type Switch - 48 ports - L3 - managed - stackable
- Enclosure Type Desktop, rack-mountable - 1U
- Routing Protocol BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng
- Subtype Gigabit Ethernet
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
- Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Capacity IPv4 routes : 24000 ¦ NetFlow entries : 48000 ¦ Switched virtual interfaces (SVIs) : 1000
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- RAM 4 GB
- Ports 48 x 10/100/1000
- Jumbo Frame Support 9198
- Flash Memory 2 GB
- MAC Address Table Size 32000 entries
- Performance Switching capacity : 176 Gbps ¦ Stacking bandwidth : 480 Gbps
Miscellaneous
- Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
- MTBF 303,660 hours
Dimensions & Weight
- Weight 17 lbs
- Depth 17.7 in
- Height 1.8 in
- Width 17.5 in
Expansion / Connectivity
- Expansion Slots 1 (total) / 1 (free) x expansion slot
- Interfaces 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 ¦ 1 x USB - Type A ¦ 1 x management (mini-USB) console - mini-USB Type B - Type B ¦ 1 x serial (RS-232) RS-232 - RJ-45 - RJ-45 - management ¦ 1 x management (Gigabit LAN) 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 ¦ 2 x network stack device
Manufacturer Warranty
- Service & Support Details Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
- Service & Support Limited lifetime warranty
Power
- Power Provided 350 Watt
- Voltage Required AC 120/230 V ( 50/60 Hz )
- Power Device Internal power supply
- Installed Qty 1 (installed) / 2 (max)
- Power Redundancy Optional
- Power Redundancy Scheme 1+1 (with optional power supply)
Environmental Parameters
- Min Operating Temperature 23 °F
- Max Operating Temperature 113 °F
- Humidity Range Operating 10 - 95% (non-condensing)
- Min Storage Temperature -40 °F
- Max Storage Temperature 158 °F
Software / System Requirements
- Software Included Cisco IOS IP Services

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-WSC388TE	3YR SNTC 8X5XNBD Cisco Catalyst 3850 48 Pt Data IP Serv	Inquiry
CON-SMBS-WSC388TE	CSCO SUP ESS 8X5XNBD Cisco Cat 3850 48 Port Data IP Serv	Inquiry
CON-SNT-WSC388TE	SNTC-8X5XNBD Cisco Catalyst 3850 48 Port Data IP Serv	Inquiry
CON-SNTE-WSC388TE	SNTC-8X5X4 Cisco Catalyst 3850 48 Port Data IP Serv	Inquiry
CON-SNTP-WSC388TE	SNTC-24X7X4 Cisco Catalyst 3850 48 Port Data IP Serv	Inquiry
CON-SSSNP-WSC388TE	SOLN SUPP 24X7X4 Cisco Catalyst 3650 48 Port Full PoE 4x10G	Inquiry
CON-SSSNT-WSC388TE	SOLN SUPP 8X5XNBD Cisco Catalyst 3850 48 Port Data IP Servic	Inquiry
