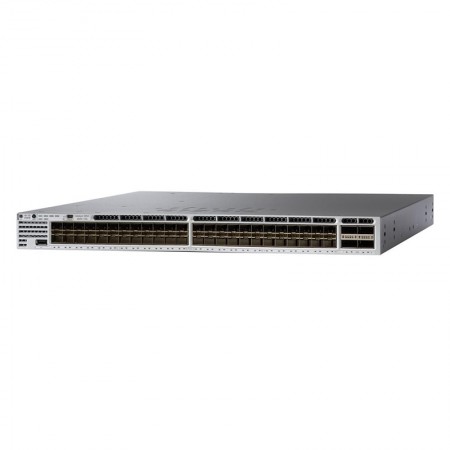

The Cisco Catalyst 3850 series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco-*-s Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 series Switches support full IEEE 802.
3 at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.
11ac Wave 2) on existing cabling infrastructure.
-
Capacity
- Virtual interfaces (VLANs)
- 4000
-
Dimensions & Weight
- 17.5 in
- 20.1 in
- 1.8 in
- 16.42 lbs
-
Environmental Parameters
- 23 °F
- 113 °F
- 10 - 95% (non-condensing)
- -40 °F
- 158 °F
-
Flash Memory
- 8 GB
-
Header
- PC
- Cisco Systems
- 1
- Cisco Catalyst
- 3850-48XS-S
- Cisco
-
Interface Provided
- 48
- Management (mini-USB)
- Type B
- Management
-
Miscellaneous
- AS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022 Class A, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS 5/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A
- Kerberos, RADIUS, Secure Shell (SSH), TACACS+
- 286,900 hours
- 1
- Gray
-
Networking
- Switch
- Wired
- CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3z
- Active, Port duplex mode, Port transmission speed, Power, Status, System
- 48
- 802.1x authentication, Access Control List (ACL) support, ARP inspection, ARP support, Bridge protocol data unit (BPDU), Cisco StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), DHCP snooping, DHCP support, Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Flexible NetFlow (FNF), Front to back airflow, Link Aggregation Control Protocol (LACP), Multiple Spanning Tree Protocol (MSTP) support, PIM snooping, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Radio resource management (RRM), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), Virtual Routing and Forwarding (VRF), VLAN Trunking Protocol (VTP), Weighted Tail Drop (WTD)
- BGP-4, EIGRP, EIGRP for IPv6, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MLDv2, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng
- 32000 entries
- Stackable
- Network hubs and switches
- PoE+
- Layer 3
- Yes
- Desktop, Rack-mountable
- 9198 bytes
- 10 Gigabit Ethernet
-
Performance
- Switching capacity
- 1280 Gbps
-
Ports
- 48
- 1 Gigabit / 10 Gigabit SFP+
-
Ports (2nd)
- 4
- 40 Gigabit QSFP+ (uplink)
-
Power Device
- 50 - 60 Hz
- 750 Watt
- 1
- 2
- AC 120/230 V
- Front-to-rear air?ow
- Optional
- 1+1 (with optional power supply)
- Internal power supply
-
RAM
- 8 GB
-
Service
- Technical support
- Consulting
- 90 days
-
Service & Support
- 5 years warranty
-
Service & Support Details
- Next business day
-
Software
- Cisco IOS IP Base
SMARTnet list
| SMARTnet | Description | Price |
|---|---|---|
| CON-3SNT-WSC08XSS | 3YR SNTC 8X5XNBD Cisco Catalyst 3850 48 Port 10G Fiber S | Inquiry |
| CON-SMBS-WSC08XSS | CSCO SUP ESS 8X5XNBD Cisco Cat 3850 48 Port 10G Fiber Sw | Inquiry |
| CON-SNT-WSC08XSS | SNTC-8X5XNBD Cisco Catalyst 3850 48 Port 10G Fiber Sw | Inquiry |
| CON-SNTE-WSC08XSS | SNTC-8X5X4 Cisco Catalyst 3850 48 Port 10G Fiber Sw | Inquiry |
| CON-SNTP-WSC08XSS | SNTC-24X7X4 Cisco Catalyst 3850 48 Port 10G Fiber Sw | Inquiry |
| CON-SSSNP-WSC08XSS | SOLN SUPP 24X7X4 Cisco Catalyst 3850 48 Port 10G Fiber Sw | Inquiry |
| CON-SSSNT-WSC08XSS | SOLN SUPP 8X5XNBD Cisco Catalyst 3850 48 Port 10G Fiber Sw | Inquiry |
