WS-C4500X-16SFP+

WS-C4500X-16SFP+

$16,800.00
$3,700.00 (78% OFF)
New
In Stock
2~6 days Arrival via DHL

Quick Overview

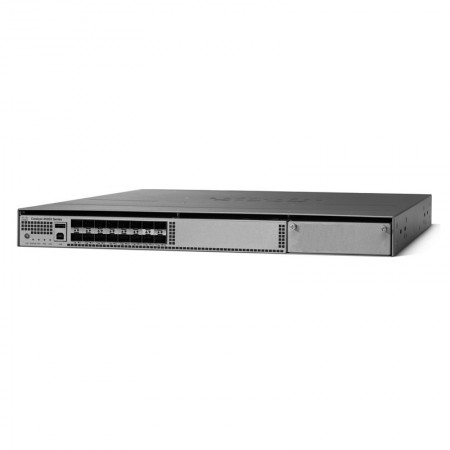

Cisco Catalyst 4500-X - Switch - 16 x 10 Gigabit SFP+ - rack-mountable

Cisco Catalyst 4500-X series switch is a fixed aggregation switch that delivers excellent scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks. It meets business growth objectives with unprecedented scalability, simplifies network virtualization with support for one-to-many and many-to-one virtual networks, and enables emerging applications by integrating many network services.

Cisco Catalyst 4500-X series provides scalable, fixed-campus aggregation solutions in space-constrained environments. The solution provides flexibility to build desired port density through two versions of base switches along with optional uplink module. The Small Form-Factor Pluggable Plus (SFP+) interface supports both 10 Gigabit Ethernet and 1 Gigabit Ethernet ports, allowing customers to use their investment in 1 Gigabit Ethernet SFP and upgrade to 10 Gigabit Ethernet when business demands change, without having to do a comprehensive upgrade of the existing deployment. The uplink module is hot swappable.

  • Main Specifications
    • Limited lifetime warranty
    • 10 Gigabit Ethernet
    • 16 x 10 Gigabit SFP+
    • 9216
    • 55K entries
    • Layer 2 switching, VLAN support, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, redundant hot swappable fans
    • Throughput : 800 Gbps ¦ IPv4 routing : 250 Mpps ¦ IPv6 routing : 125 Mpps
    • Limited lifetime warranty
    • Cisco Catalyst 4500-X - switch - 16 ports - rack-mountable
    • IPv4 forwarding table entries : 64000 ¦ IPv6 forwarding table entries : 32000 ¦ NetFlow entries : 128000 ¦ Virtual interfaces (VLANs) : 4094 ¦ IGMP groups : 32000 ¦ Multicast entries (IPv4) : 24000 ¦ Multicast entries (IPv6) : 12000 ¦ ARP entries : 47000 ¦ Spanning Tree Protocol instances : 10000 ¦ QoS hardware queues : 64 ¦ QoS hardware entries : 128000 ¦ ACL entries : 131072
    • IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s
    • Switch - 16 ports
    • Rack-mountable
    • RMON 1, RMON 2
    • Optional
    • 10 Gigabit Ethernet
  • General
    • 10 Gigabit Ethernet
    • : 1.5 GHz
    • IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s
    • Switch - 16 ports
    • Rack-mountable
    • Throughput : 800 Gbps ¦ IPv4 routing : 250 Mpps ¦ IPv6 routing : 125 Mpps
    • Layer 2 switching, VLAN support, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, redundant hot swappable fans
    • 55K entries
    • 2 GB (max)
    • 16 x 10 Gigabit SFP+
    • 9216
    • IPv4 forwarding table entries : 64000 ¦ IPv6 forwarding table entries : 32000 ¦ NetFlow entries : 128000 ¦ Virtual interfaces (VLANs) : 4094 ¦ IGMP groups : 32000 ¦ Multicast entries (IPv4) : 24000 ¦ Multicast entries (IPv6) : 12000 ¦ ARP entries : 47000 ¦ Spanning Tree Protocol instances : 10000 ¦ QoS hardware queues : 64 ¦ QoS hardware entries : 128000 ¦ ACL entries : 131072
    • 4 GB - DDR2 SDRAM
    • RMON 1, RMON 2
    • 10 Gigabit Ethernet
  • Environmental Parameters
    • -40 °F
    • 158 °F
    • 32 °F
    • 104 °F
  • Miscellaneous
    • CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1, AS/NZS, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition
    • 209,330 hours
  • Power
    • Internal power supply - hot-plug
    • 330 Watt
    • 0 (installed) / 2 (max)
    • 1+1 (with optional power supply)
    • Optional
  • Software / System Requirements
    • Cisco IOS IP Base
  • Manufacturer Warranty
    • Limited lifetime warranty
    • Limited warranty - advance parts replacement - lifetime - response time: 10 days
  • Expansion / Connectivity
    • 16 x 10Gb Ethernet / 1Gb Ethernet - SFP/SFP+ ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management ¦ 1 x USB - Type A ¦ 1 x console - RJ-45
    • 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x expansion slot

SMARTnet list

SMARTnet Description Price
CON-3SNT-WSC16SFX 3YR SNTC 8X5XNBD Catalyst 4500-X 16 Pt 10G IP Base, Fro Inquiry
CON-SMBS-WSC16SFX CSCO SUP ESS 8X5XNBD Cat 4500-X 16 Port 10G IP Base, Fro Inquiry
CON-SNT-WSC16SFX SNTC-8X5XNBD Catalyst 4500-X 16 Port 10G IP Base, Fro Inquiry
CON-SNTE-WSC16SFX SNTC-8X5X4 Catalyst 4500-X 16 Port 10G IP Base, Fro Inquiry
CON-SNTP-WSC16SFX SNTC-24X7X4 Catalyst 4500-X 16 Port 10G IP Base, Fro Inquiry
CON-SSSNP-WSC16SFX SOLN SUPP 24X7X4 Catalyst 4500-X 16 Port 10G IP Base, Front- Inquiry
CON-SSSNT-WSC16SFX SOLN SUPP 8X5XNBD Catalyst 4500-X 16 Port 10G IP Base, Front Inquiry
