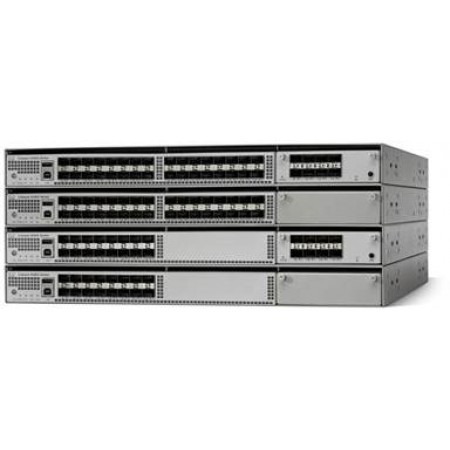

Cisco Catalyst 4500-X series switch is a fixed aggregation switch that delivers excellent scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks. It meets business growth objectives with unprecedented scalability, simplifies network virtualization with support for one-to-many and many-to-one virtual networks, and enables emerging applications by integrating many network services.
Cisco Catalyst 4500-X series provides scalable, fixed-campus aggregation solutions in space-constrained environments. The solution provides flexibility to build desired port density through two versions of base switches along with optional uplink module. The Small Form-Factor Pluggable Plus (SFP+) interface supports both 10 Gigabit Ethernet and 1 Gigabit Ethernet ports, allowing customers to use their investment in 1 Gigabit Ethernet SFP and upgrade to 10 Gigabit Ethernet when business demands change, without having to do a comprehensive upgrade of the existing deployment. The uplink module is hot swappable.
-
General
- : 1.5 GHz
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s
- Layer 2 switching, VLAN support, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, redundant hot swappable fans
- Throughput : 800 Gbps ¦ IPv4 routing : 250 Mpps ¦ IPv6 routing : 125 Mpps
- Rack-mountable
- Switch - 24 ports - managed
- IPv4 forwarding table entries : 256000 ¦ IPv6 forwarding table entries : 128000 ¦ NetFlow entries : 128000 ¦ Virtual interfaces (VLANs) : 4094 ¦ IGMP groups : 32000 ¦ Multicast entries (IPv4) : 32000 ¦ Multicast entries (IPv6) : 32000 ¦ ARP entries : 47000 ¦ Spanning Tree Protocol instances : 10000 ¦ QoS hardware queues : 64 ¦ QoS hardware entries : 128000 ¦ ACL entries : 131072
- 4 GB - DDR2 SDRAM
- RMON 1, RMON 2
- 10 Gigabit Ethernet
- 2 GB (max)
- 55K entries
- 24 x 10 Gigabit SFP+
- 9216
-
Main Specifications
- Limited lifetime warranty
- Switch - 24 ports - managed
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s
- Cisco Catalyst 4500-X - switch - 24 ports - managed - rack-mountable
- 10 Gigabit Ethernet
- Layer 2 switching, VLAN support, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, redundant hot swappable fans
- Optional
- 24 x 10 Gigabit SFP+
- 55K entries
- 9216
- RMON 1, RMON 2
- Rack-mountable
- IPv4 forwarding table entries : 256000 ¦ IPv6 forwarding table entries : 128000 ¦ NetFlow entries : 128000 ¦ Virtual interfaces (VLANs) : 4094 ¦ IGMP groups : 32000 ¦ Multicast entries (IPv4) : 32000 ¦ Multicast entries (IPv6) : 32000 ¦ ARP entries : 47000 ¦ Spanning Tree Protocol instances : 10000 ¦ QoS hardware queues : 64 ¦ QoS hardware entries : 128000 ¦ ACL entries : 131072
- Throughput : 800 Gbps ¦ IPv4 routing : 250 Mpps ¦ IPv6 routing : 125 Mpps
- 17.2 in x 21.8 in x 1.7 in
- 20 lbs
- Limited lifetime warranty
-
Miscellaneous
- CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1, AS/NZS, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition
- 199,720 hours
-
Environmental Parameters
- 104 °F
- 32 °F
- -40 °F
- 158 °F
-
Manufacturer Warranty
- Limited warranty - advance parts replacement - lifetime - response time: 10 days
- Limited lifetime warranty
-
Expansion / Connectivity
- 24 x 10Gb Ethernet / 1Gb Ethernet - SFP/SFP+ ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management ¦ 1 x USB - Type A ¦ 1 x console - RJ-45
- 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x expansion slot
-
Power
- 1+1 (with optional power supply)
- Optional
- 330 Watt
- Internal power supply - hot-plug
- 1 (installed) / 2 (max)
-
Software / System Requirements
- Cisco IOS IP Base
-
Dimensions & Weight
- 20 lbs
- 1.7 in
- 21.8 in
- 17.2 in
