WS-C4500X-32SFP+

WS-C4500X-32SFP+

0 Review

List Price:	$29,400.00
Price:	$6,020.00 (80% OFF)
Condition:	New
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

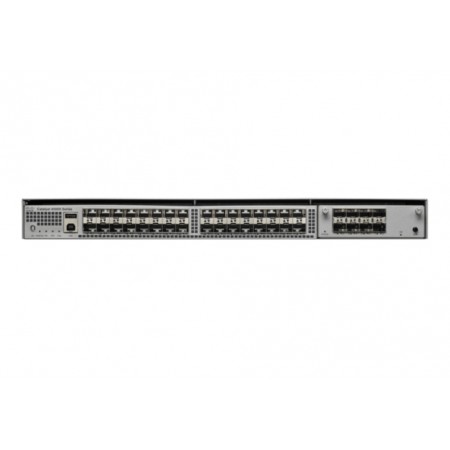

Cisco Catalyst 4500-X 32 Port 10G IP Base, Front-to-Back cooling, and no Power Supply

Overview
Specification
SMARTnet
Shipping Payment
Warranty
Reviews

Innovation could be looked at as taking a single or set of previous ideas and using those ideas to create a better technology that enhances the previous design’s intentions. The Cisco WS-C4500X-32SFP+ switch are an example of extraordinary innovation. With simplified operations, security, application monitoring, high availability and platform scalability, it’s taken new heights in innovation from any previous designs in the Cisco Catalyst series.

The demand for network virtualization has been increasing steadily as it is ideal for network efficiency, management and costs. The Cisco Catalyst 4500 X series switches have the ability to implement network virtualization utilizing Cisco’s EVN (Easy Virtual Networks) and VVS (Virtual Switching System). As this alone is an ideal feature that can now be found in a Cisco switch, let’s take a more in-depth look at the other key features:

Simplified Operations - Support for Smart Install Director, providing a single point of management enabling zero-touch deployment for new switches and stacks in in campus and branch networks.

Network Security - Support for Cisco TrustSec™ technologies well as robust control plane policing (CoPP) to address denial of service attacks.

Application Monitoring - Enhanced application monitoring through Flexible Netflow and eight ports of line rate bidirectional Switched Port Analyzer (SPAN)/Remote Switched Port Analyzer (RSPAN). In addition Cisco IOS® XE Software provides the ability to host third-party applications.

High Availability - Delivers the network availability demanded by business-critical enterprise applications through comprehensive high-availability capabilities, including VSS and EVN. Furthermore, innovative features such as redundant hot swappable fans and power supplies with AC to DC, and DC to AC failover remove single point of failure in network.

Platform Scalability - Delivers up-to 800 Gbps of switching capacity, capable of scaling up to 1.

6-Tbps capacity with the VSS technology. Future-proof investment with modular uplink and auto-detect 10 Gigabit Ethernet and 1 Gigabit Ethernet ports.

As always, Vology can assist you with any technical questions you may have regarding pricing, configuration, installation and troubleshooting.

Main Specifications
- Subtype 10 Gigabit Ethernet
- Power Redundancy Optional
- Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s
- Device Type Switch - 32 ports
- Manufacturer Warranty Limited lifetime warranty
- Product Description Cisco Catalyst 4500-X - switch - 32 ports - rack-mountable
- Features Layer 2 switching, VLAN support, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, redundant hot swappable fans
- MAC Address Table Size 55K entries
- Ports 32 x 10 Gigabit SFP+
- Jumbo Frame Support 9216
- Capacity IPv4 forwarding table entries : 256000 ¦ IPv6 forwarding table entries : 128000 ¦ NetFlow entries : 128000 ¦ Virtual interfaces (VLANs) : 4094 ¦ IGMP groups : 32000 ¦ Multicast entries (IPv4) : 32000 ¦ Multicast entries (IPv6) : 32000 ¦ ARP entries : 47000 ¦ Spanning Tree Protocol instances : 10000 ¦ QoS hardware queues : 64 ¦ QoS hardware entries : 128000 ¦ ACL entries : 131072
- Enclosure Type Rack-mountable
- Remote Management Protocol RMON 1, RMON 2
- Performance Throughput : 800 Gbps ¦ IPv4 routing : 250 Mpps ¦ IPv6 routing : 125 Mpps
- Interfaces 10 Gigabit Ethernet
- Bundled Services Limited lifetime warranty
General
- Subtype 10 Gigabit Ethernet
- Flash Memory 2 GB (max)
- MAC Address Table Size 55K entries
- Capacity IPv4 forwarding table entries : 256000 ¦ IPv6 forwarding table entries : 128000 ¦ NetFlow entries : 128000 ¦ Virtual interfaces (VLANs) : 4094 ¦ IGMP groups : 32000 ¦ Multicast entries (IPv4) : 32000 ¦ Multicast entries (IPv6) : 32000 ¦ ARP entries : 47000 ¦ Spanning Tree Protocol instances : 10000 ¦ QoS hardware queues : 64 ¦ QoS hardware entries : 128000 ¦ ACL entries : 131072
- Remote Management Protocol RMON 1, RMON 2
- RAM 4 GB - DDR2 SDRAM
- Processor : 1.5 GHz
- Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s
- Features Layer 2 switching, VLAN support, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, redundant hot swappable fans
- Device Type Switch - 32 ports
- Enclosure Type Rack-mountable
- Performance Throughput : 800 Gbps ¦ IPv4 routing : 250 Mpps ¦ IPv6 routing : 125 Mpps
- Ports 32 x 10 Gigabit SFP+
- Jumbo Frame Support 9216
- Interfaces 10 Gigabit Ethernet
Miscellaneous
- Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1, AS/NZS, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition
- MTBF 199,720 hours
Expansion / Connectivity
- Expansion Slots 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x expansion slot
- Interfaces 32 x 10Gb Ethernet / 1Gb Ethernet - SFP/SFP+ ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management ¦ 1 x USB - Type A ¦ 1 x console - RJ-45
Environmental Parameters
- Min Operating Temperature 32 °F
- Max Operating Temperature 104 °F
- Min Storage Temperature -40 °F
- Max Storage Temperature 158 °F
Manufacturer Warranty
- Service & Support Limited lifetime warranty
- Service & Support Details Limited warranty - advance parts replacement - lifetime - response time: 10 days
Software / System Requirements
- Software Included Cisco IOS IP Base
Power
- Power Device Internal power supply - hot-plug
- Power Consumption Operational 330 Watt
- Power Redundancy Scheme 1+1 (with optional power supply)
- Power Redundancy Optional
- Installed Qty 0 (installed) / 2 (max)

SMARTnet list

SMARTnet	Description	Price
CON-3SNT-C45X32SF	3YR SNTC 8X5XNBD Catalyst 4500-X 32 Pt 10G IP Base, Fro	Inquiry
CON-SMBS-C45X32SF	CSCO SUP ESS 8X5XNBD Cat 4500-X 32 Port 10G IP Base, Fro	Inquiry
CON-SNT-C45X32SF	SNTC-8X5XNBD Catalyst 4500-X 32 Port 10G IP Base, Fro	Inquiry
CON-SNTE-C45X32SF	SNTC-8X5X4 Catalyst 4500-X 32 Port 10G IP Base, Fro	Inquiry
CON-SNTP-C45X32SF	SNTC-24X7X4 Catalyst 4500-X 32 Port 10G IP Base, Fro	Inquiry
CON-SSSNP-C45X32SF	SOLN SUPP 24X7X4 Catalyst 4500-X 32 Port 10G IP Base, Front-	Inquiry
CON-SSSNT-C45X32SF	SOLN SUPP 8X5XNBD Catalyst 4500-X 32 Port 10G IP Base, Front	Inquiry
