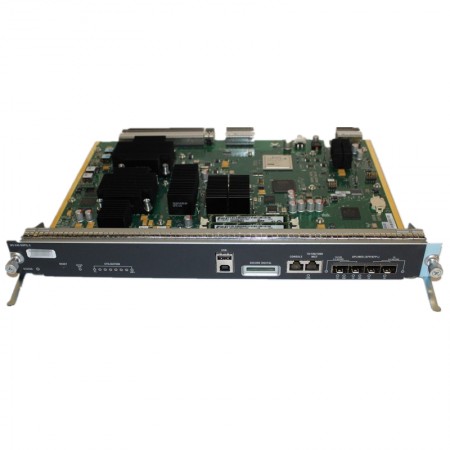

WS-X45-SUP7L-E

WS-X45-SUP7L-E

0 Review

List Price:	$13,800.00
Price:	$3,450.00 (75% OFF)
Condition:	Brand New Sealed
Availability:	In Stock
Shipping:	2~6 days Arrival via DHL

Qty:

Estimate Shipping:

Quick Overview

Catalyst 4500 E-Series Supervisor LE 848Gbps

Overview
Specification
Shipping Payment
Warranty
Reviews

The Cisco Catalyst 4500E Supervisor Engine 7L-E is an enterprise-class borderless campus access and price/performance aggregation supervisor engine designed to provide 520 Gbps per system with E-Series chassis. The Cisco Catalyst 4500E Supervisor Engine 7L-E provides unprecedented performance with borderless services such as Flexible NetFlow (FNF) and hosted third-party applications.

The Cisco Catalyst 4500E Supervisor Engine 7L-E builds on the widely deployed line of Cisco Catalyst 4500 supervisor engines and enhances its predecessors to provides nonblocking 48 Gbps per slot bandwidth with Flexible NetFlow for optimized application visibility.

Main Specifications
- Remote Management Protocol RMON 1, RMON 2
- Enclosure Type Plug-in module
- Manufacturer Warranty Limited lifetime warranty
- Flash Memory Installed (Max) 1 GB
- Device Type Control processor
- Features IPv6 support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), IPv4 support, Link Aggregation Control Protocol (LACP), NetFlow, universal power over Ethernet (UPOE)
- Product Description Cisco Supervisor Engine 7L-E - control processor
- Processor 1 x 1.5 GHz
- RAM Installed ( Max ) 2 GB
- Capacity QoS hardware entries : 64000 ¦ Security services entries : 64000 ¦ Virtual interfaces (VLANs) : 4094 ¦ IPv4 routes : 64000 ¦ IPv6 routes : 32000 ¦ MAC addresses : 55000 ¦ Spanning Tree Protocol instances : 12000 ¦ Switched virtual interfaces (SVIs) : 4094 ¦ NetFlow entries : 128000 ¦ ARP entries : 47000
- Performance Switching capacity : 520 Gbps ¦ Per-slot switching capacity : 48 Gbps ¦ IPv6 routing : 110 Mbps ¦ IPv4 routing : 225 Mbps
- Form Factor Plug-in module
- RAM 2 GB
- Flash Memory 1 GB
Miscellaneous
- MTBF 183,341 hour(s)
- Compliant Standards NEBS level 3, CISPR 22 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, CAN/CSA C22.2 No. 60950-1
Processor / Memory / Storage
- Flash Memory Installed (Max) 1 GB
- Processors Installed 1 x 1.5 GHz
- Hard Drive None.
- RAM Installed ( Max ) 2 GB SDRAM
- RAM 2 GB SDRAM
- Flash Memory 1 GB
Environmental Parameters
- Humidity Range Operating 10 - 90% (non-condensing)
- Min Operating Temperature 32 °F
- Max Operating Temperature 104 °F
Networking
- Remote Management Protocol RMON 1, RMON 2
- Capacity QoS hardware entries : 64000 ¦ Security services entries : 64000 ¦ Virtual interfaces (VLANs) : 4094 ¦ IPv4 routes : 64000 ¦ IPv6 routes : 32000 ¦ MAC addresses : 55000 ¦ Spanning Tree Protocol instances : 12000 ¦ Switched virtual interfaces (SVIs) : 4094 ¦ NetFlow entries : 128000 ¦ ARP entries : 47000
- Routing Protocol PIM-SSM
- Connectivity Technology Wired
- Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az
- Form Factor Plug-in module
- Features IPv6 support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), IPv4 support, Link Aggregation Control Protocol (LACP), NetFlow, universal power over Ethernet (UPOE)
- Performance Switching capacity : 520 Gbps ¦ Per-slot switching capacity : 48 Gbps ¦ IPv6 routing : 110 Mbps ¦ IPv4 routing : 225 Mbps
General
- Device Type Control processor
Manufacturer Warranty
- Service & Support Limited lifetime warranty
- Service & Support Details Limited warranty - advance parts replacement - lifetime - response time: 10 days
Expansion / Connectivity
- Compatible Slots 1 x expansion slot
- Expansion Slot(s) 2 (total) / 2 (free) x SFP+ ¦ 2 (total) / 2 (free) x SFP (mini-GBIC) ¦ 1 (total) / 1 (free) x SD Memory Card
- Interfaces 1 x management - console - RJ-45 ¦ 1 x management - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB - 4 pin USB Type A
- Expansion Slots 2 (total) / 2 (free) x ¦ 2 (total) / 2 (free) x ¦ 1 (total) / 1 (free) x
Communications
- Supported Flash Memory Cards SD Memory Card
